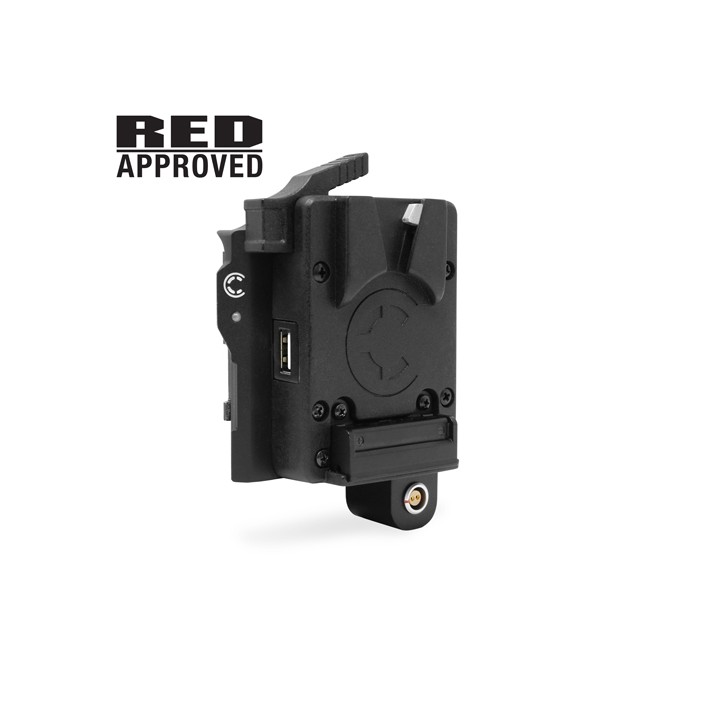

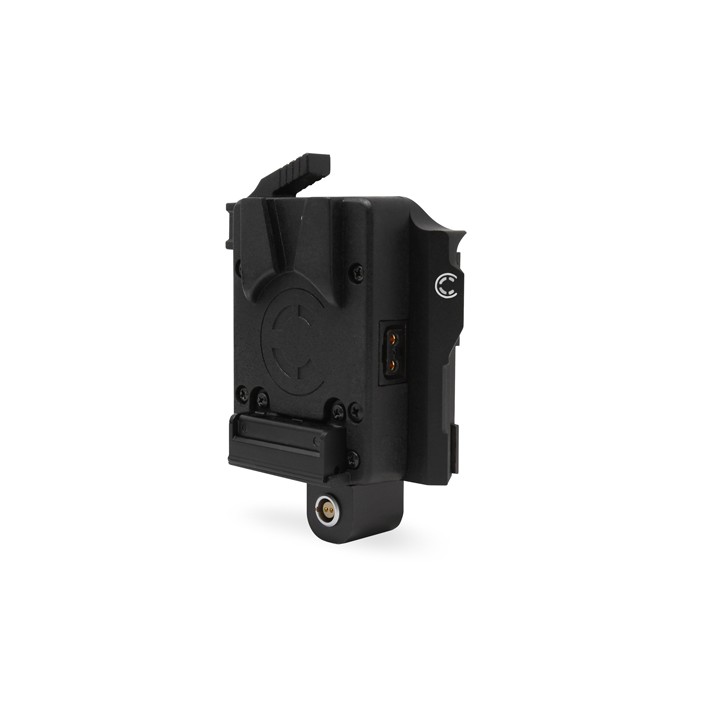

V-mt Plate for RED® KOMODO™

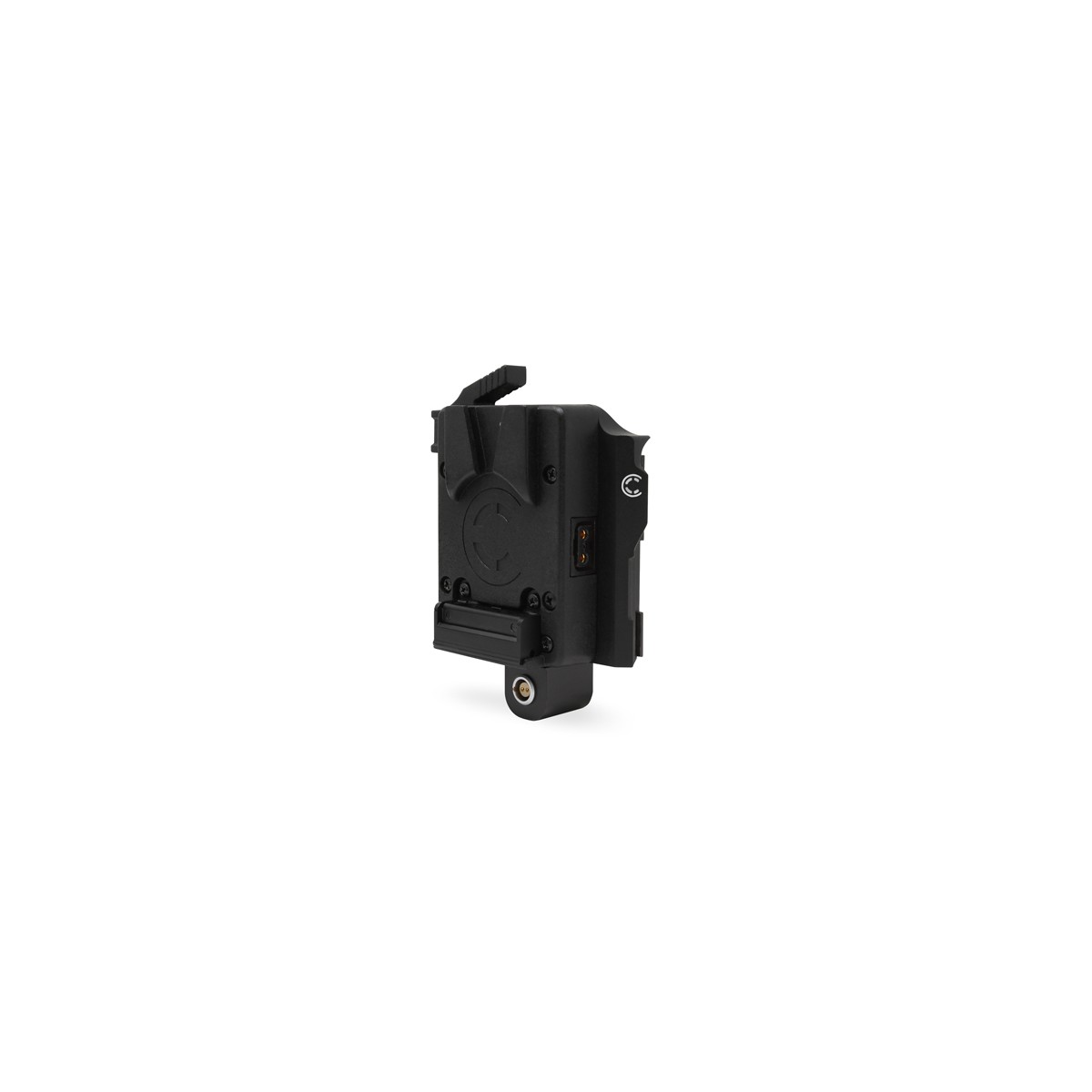

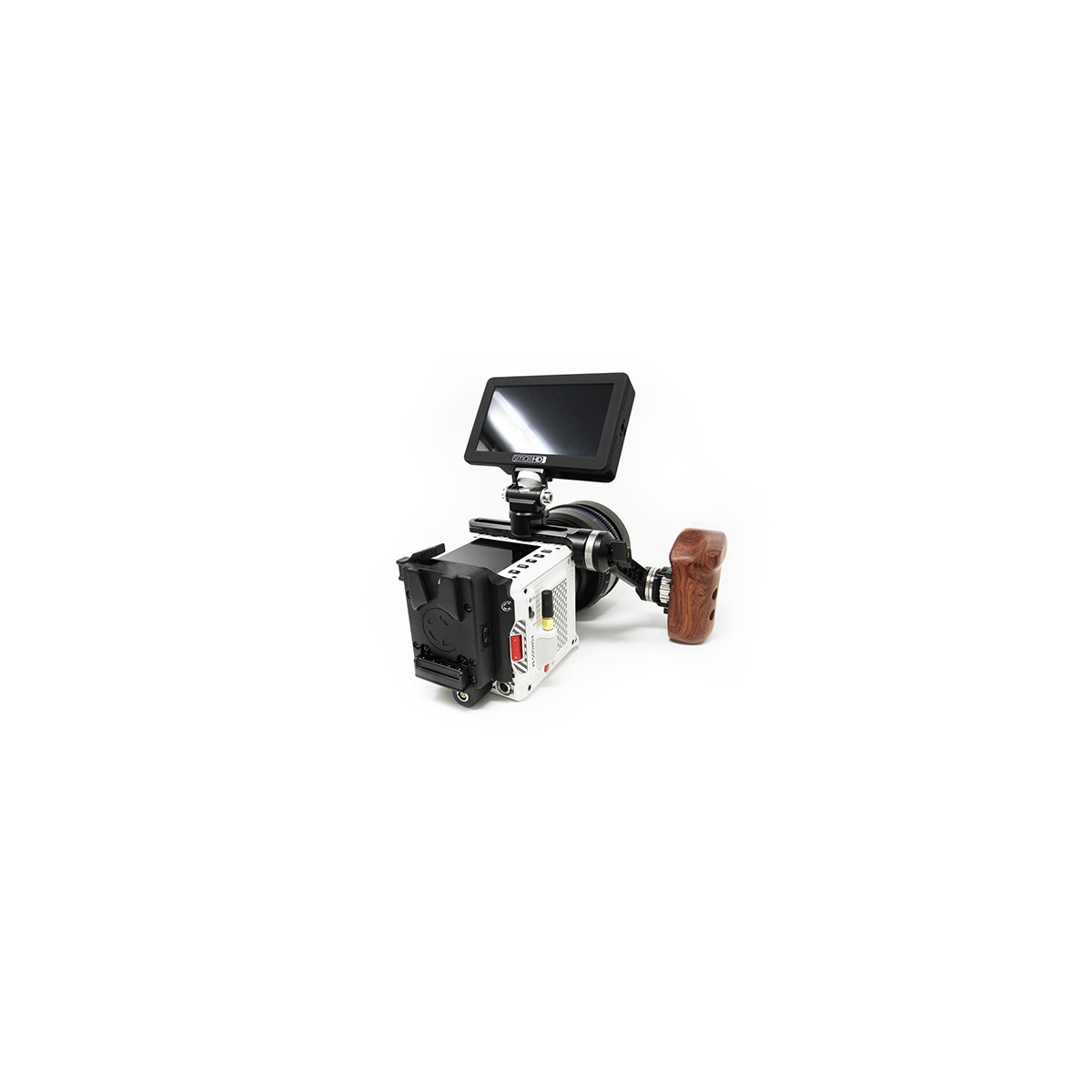

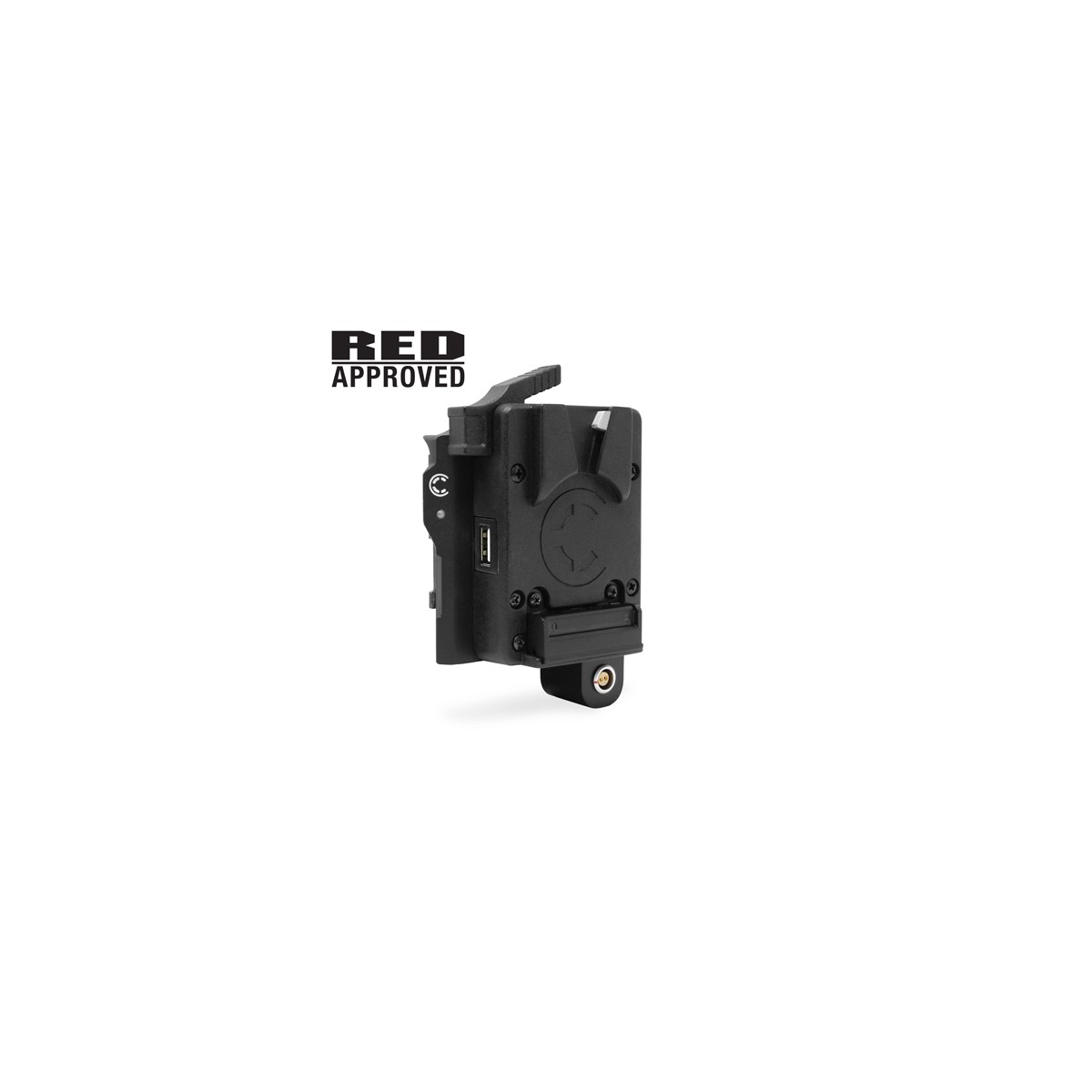

The CXV-KOMU is a BP to v-mount plate direct mount specifically designed for the RED® KOMODO™ camera, allowing use of 14.4V V-Mount batteries and leaving the camera’s DC input available for AC power and battery hot swap. When used with “smart” batteries that pass SMBUS data like Core SWX batteries, the camera will read battery percentage and runtime, providing accurate remaining battery capacity info. It’s equipped with 3 DC output ports: P-Tap, USB, and 2pin Lemo. The plate also has a reinforced V-Mount locking mechanism, making it the most robust V-Mount plate on the market.

• Input: 11.9vdc-16.8vdc
• Output for camera: DC 7.4v, Dual Canon BP backing
• Powertap: DC 11.9-17v, Unregulated
• 2p Lemo: DC 11.9-17v, Unregulated
• USB: DC 5v, Unregulated
• Firmware port: USB Micro
• LED power indication: Bi-color(red/green)
