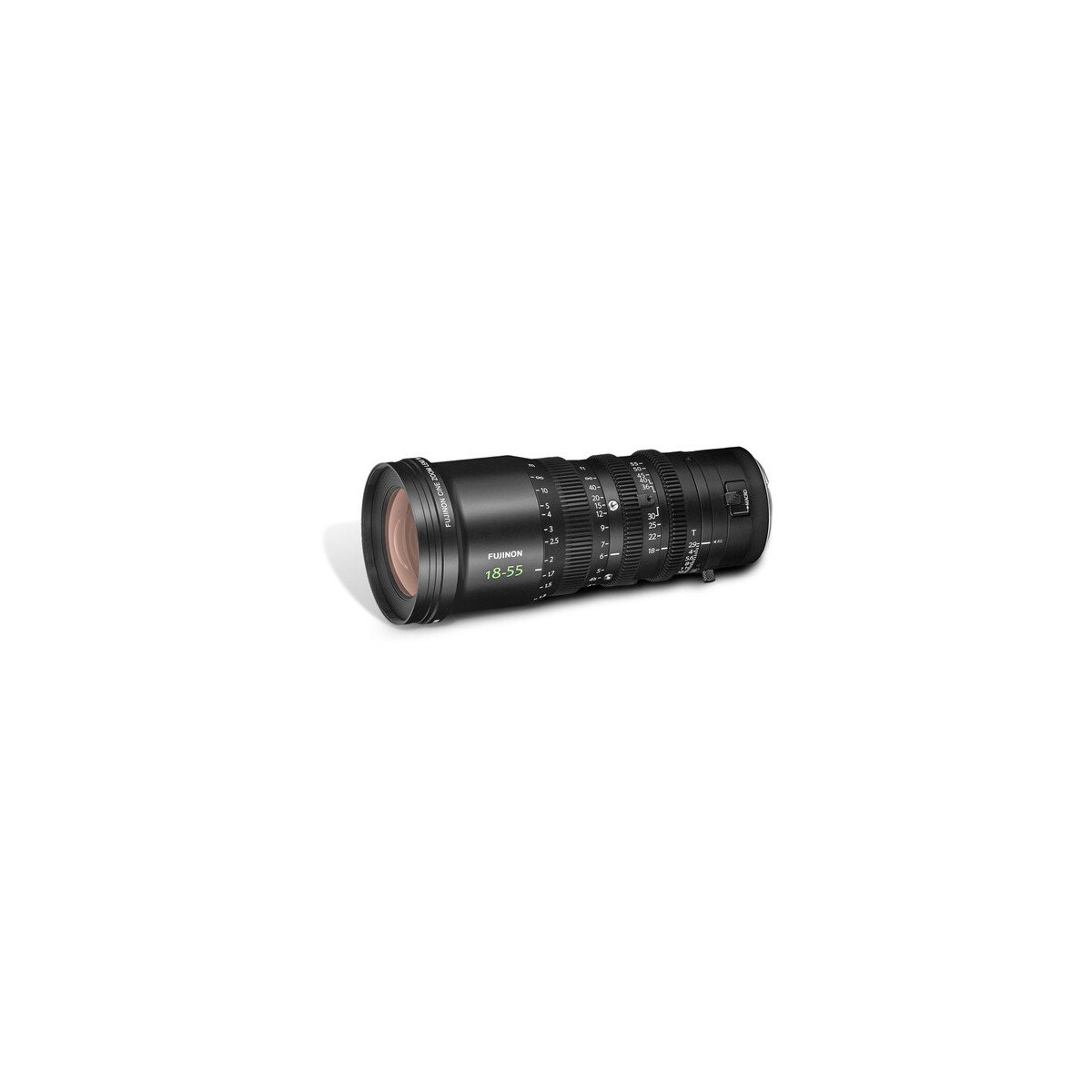

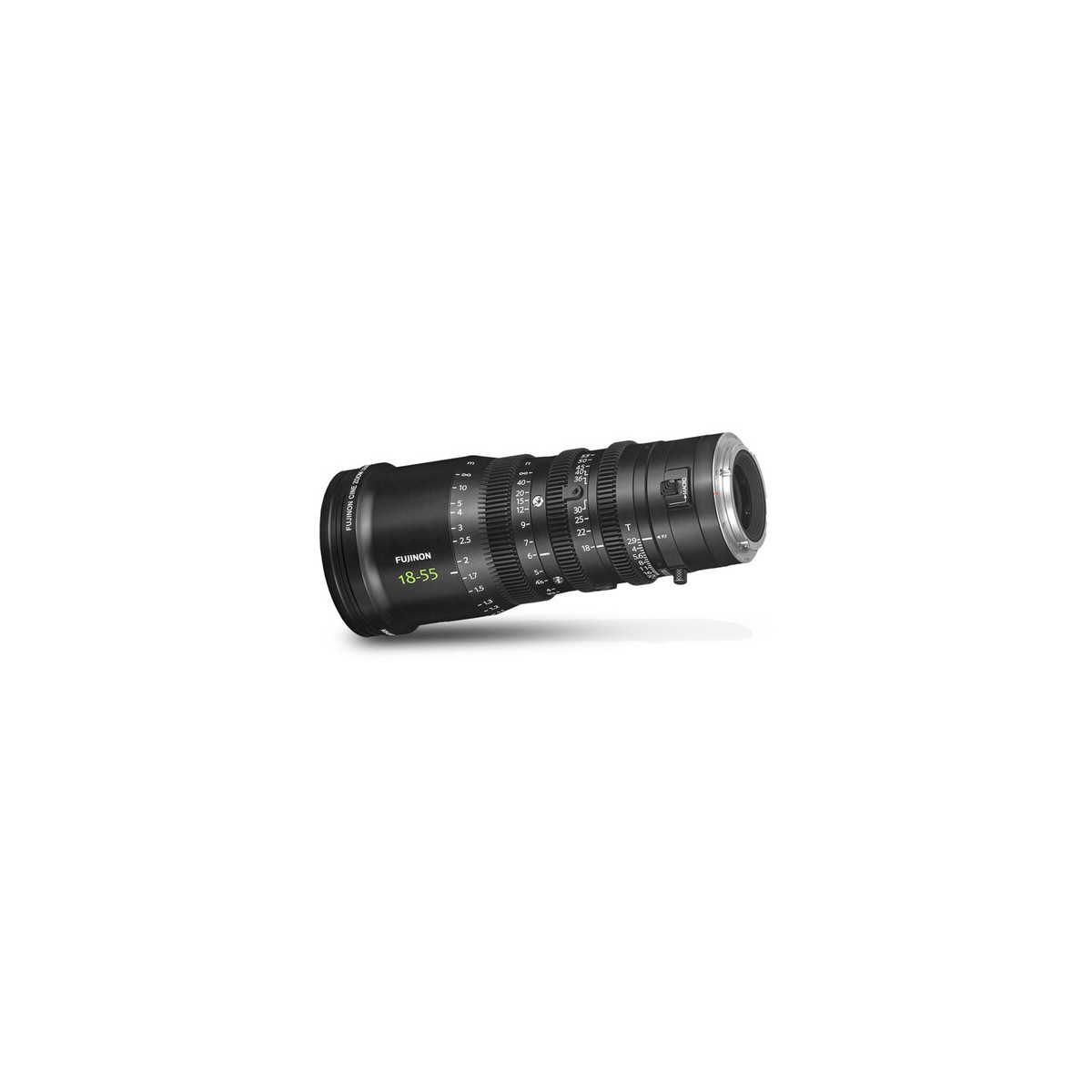

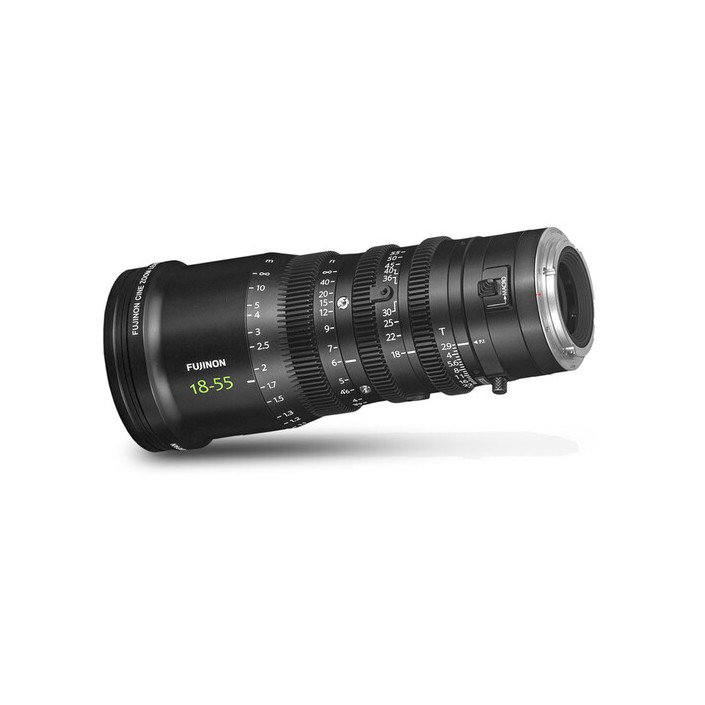

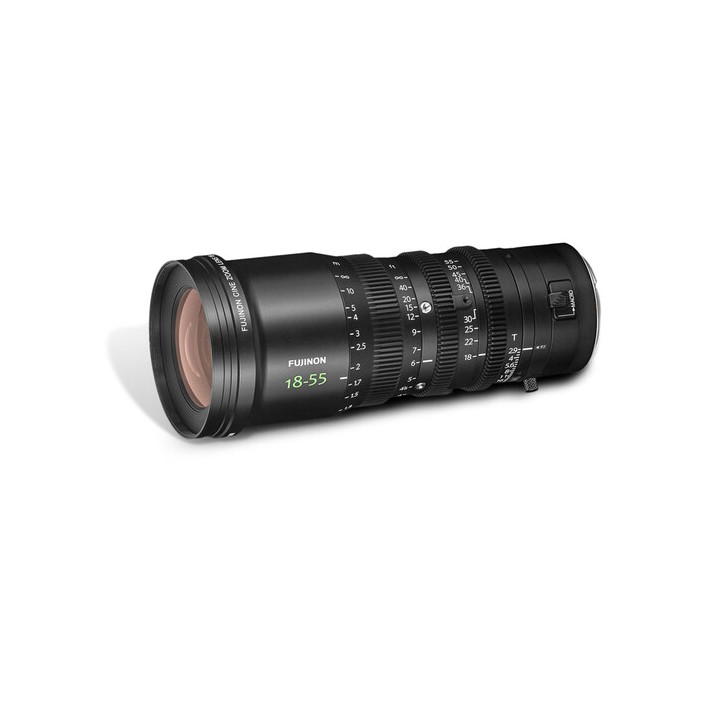

Fujinon MK 18-55 f2.9 (RF Mount) lens

The Fujinon MK-R 18-55mm T2.9 Cine Zoom Lens is a lightweight cine-style zoom lens for Canon RF-mount cameras with Super35-sized sensors, mirrorless cameras such as the Canon C70, and cinema cameras such as the RED KOMODO. It features a mechanical design with three independent lens control rings: focus, iris, and zoom. Each ring incorporates a cine-style gear with a 0.8 MOD for interfacing with standard cine-style lens accessories. The focus ring features 200° of rotation, which gives room for precise focus pulls, and the iris is clickless, enabling smooth iris pulls. The lens also incorporates a macro mode for close focusing capabilities.

The lens is color-matched to other Fujinon lenses such as the MK, HK, ZK, and XK series, which enables smooth intercutting between lenses. The 85mm front diameter allows use with many cine-style matte boxes via the use of optional step-up rings (rings not included). The lens weighs only 2.2 pounds, which is light for a long cinema zoom that holds focus and aperture throughout the focal length range. It is designed for cameras with a Canon RF mount, so it has a short flange focal distance that can vignette at small apertures between 18 and 20mm, but the lens allows for flange focal distance adjustment, so you can fine-tune it to the camera using the lens.

• T2.9 to T22 aperture with nine iris blades for attractive bokeh
• The 28.5mm diameter image circle covers the 3-perf Super35 format with a 16:9 aspect ratio
• Industry-standard 0.8 film pitch gears for focus, zoom, and iris control
• The gear ring positions for focus, zoom, and iris are located at the same position on both lenses in the MK and MK-R series, making switching between the two zooms quick as you don't have to adjust the position of lens accessories
• Both lenses in the MK-R series have the same weight and length, so there is no need to rebalance your camera when you change from one lens to the other
• 200° focus barrel rotation
• No shims are required to adjust the flange focal distance as this lens has a built-in adjustment mechanism
• Macro focus function available

Key Features

Covers Super35 Format

Canon RF Lens Mount

Consistent T2.9 Aperture over Zoom Range

3 x Standard 0.8 MOD Gears

Clickless 9-Blade Iris

200° Focus Rotation and Macro Mode

Color-Matched to MK/HK/ZK/XK Series

85mm Front Outside Diameter

Weighs 2.2 Pounds

Flange Focal Distance Adjustment

Fujinon MK18-55mm T2.9 Specs

Focal Length 18 to 55mm

Lens Mount Canon RF

Lens Format Coverage Super35/APS-C

Image Circle 28.5 mm

Maximum Aperture T2.9

f/2.75

Minimum Aperture T22

Horizontal Angle of View Super35: 69.2 to 14.5°

Minimum Focus Distance From Camera Sensor: 2.8' / 0.9 m

Diaphragm Blades 9

Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch

Zoom: 0.8 MOD / 32 Pitch

Iris: 0.8 MOD / 32 Pitch

Front Diameter 85 mm

Filter Thread 82 mm

Focus Scales Metric, Imperial

Focus Rotation 200°

Zoom Ratio None

Image Stabilization No

Lens Support Lens Support Foot

Dimensions (W x H) 13 x 7.5" / 33.0 x 19.1 cm

Length 8.1" / 206.3 mm

Weight 2.2 lb / 980 g

Packaging Info

Package Weight 5.02 lb

Box Dimensions (LxWxH) 14.7 x 8.3 x 8.3"

Designed For Use With:

Canon EOS C70, Canon EOS R, Canon EOS R10, Canon EOS R3, Canon EOS R5, Canon EOS R50, Canon EOS R6, Canon EOS R6 Mark II, Canon EOS R7, Canon EOS R8, Canon EOS RP, Canon EOS Ra, Canon R8

Kolari Vision EOS RP

RED DIGITAL CINEMA Komodo, RED DIGITAL CINEMA Komodo Monochrome, RED DIGITAL CINEMA Komodo X, RED DIGITAL CINEMA V-RAPTOR, RED DIGITAL CINEMA V-RAPTOR RHINO
