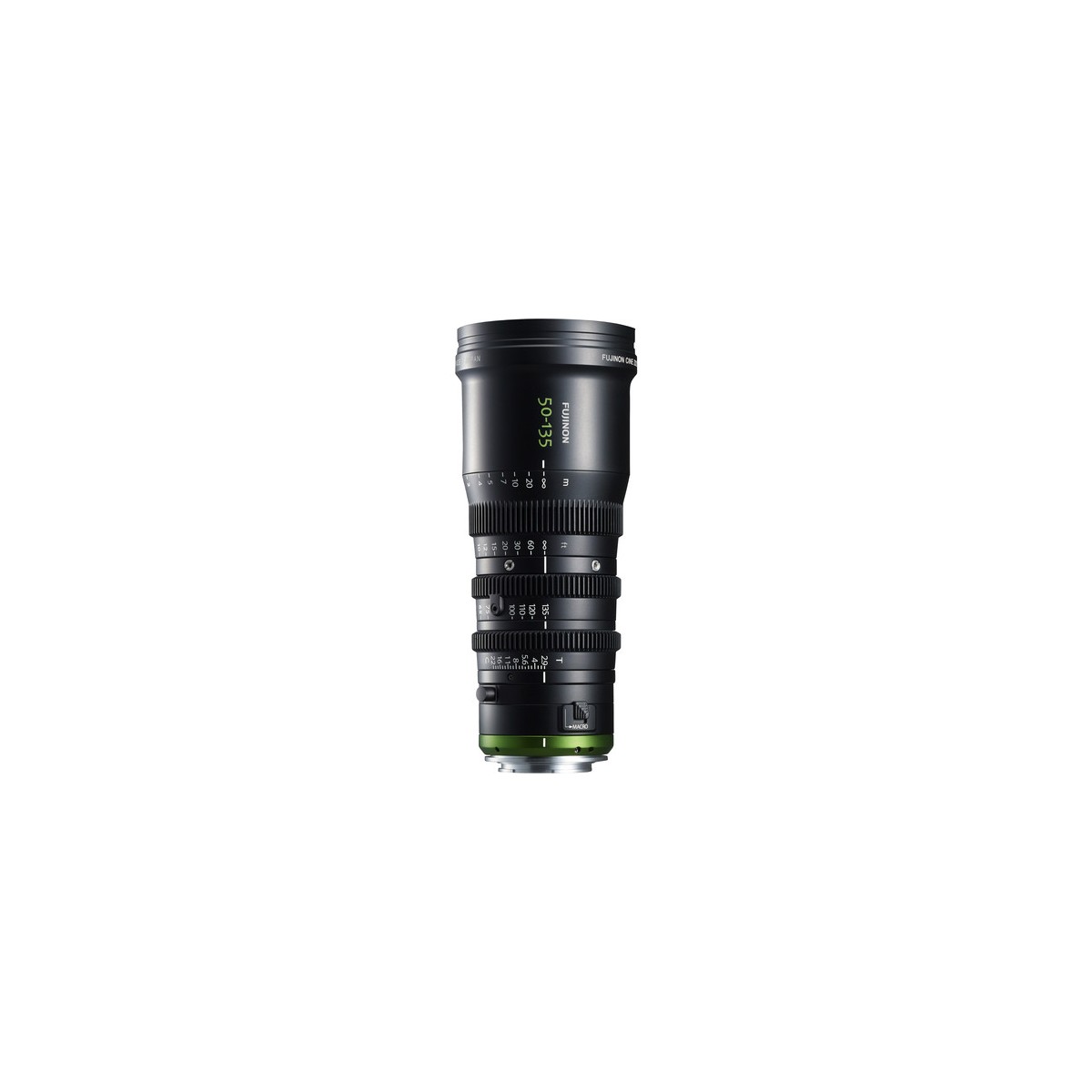

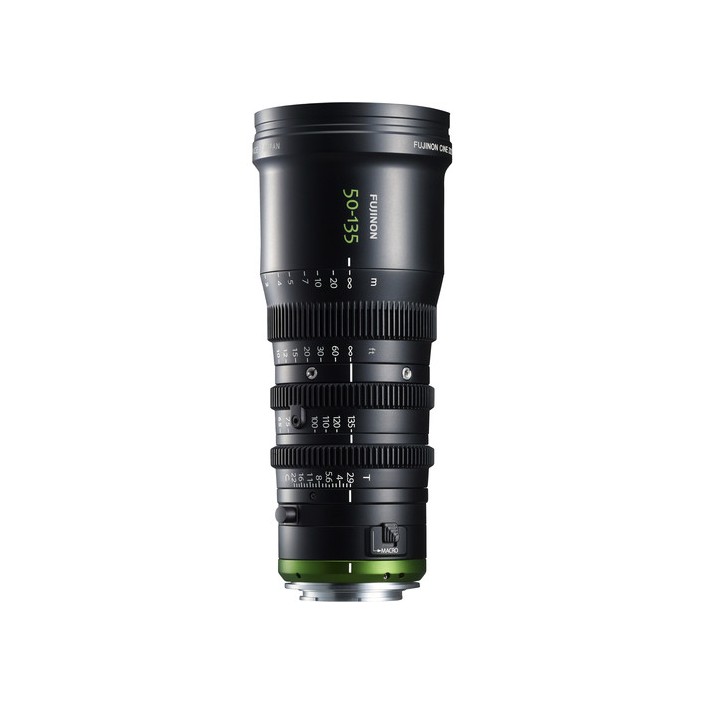

Fujinon MK 50-135 (RF Mount) lens

The Fujinon MK50-135mm T2.9 Lens in E Mount is a lightweight cine-style zoom lens for E mount cameras with a Super 35mm-sized sensor. It features a mechanical design with three independent lens control rings: focus, iris, and zoom. Each ring incorporates a cine-style gear with a 0.8 MOD for interfacing with standard cine -style lens accessories. The focus ring features approximately 200° of rotation, which provides room or precise focus pulls, and the iris is clickless, enabling smooth iris pulls. The lens also incorporates a macro mode for close focusing capabilities.

The lens is color matched to other Fujinon lenses such as the HK, ZK, and XK series, which enables smooth intercutting between lenses. The 85mm front enables use with many cine-style matte boxes via use of optional step up rings (rings not included). The lens weighs only 2.16 pounds, which is fairly light for a cinema zoom that holds focus and aperture throughout the focal length range. It is designed for camera's with a Sony E mount, so it has a short flange focal distance, but the lens allows flange focal distance adjustment so you can fine tune it to the camera you are using the lens on.

• T2.9 to T22 aperture with 9 iris blades for attractive bokeh
• The 28.5mm diameter image circle covers the 3-perf super 35 format with a 16:9 aspect ratio
• Industry standard 0.8 film pitch gears for focus, zoom, and iris control
• The gear rings positions for focus, zoom, and iris are located at the same position on both lenses in the MK series, making switching between the two zooms quick as you don't have to adjust the position of lens accessories
• Both lenses in the MK series have the same weight and length so there is no need to rebalance your camera when you change from one lens to the other
• 200° focus barrel rotation
• No shims are required to adjust the flange focal distance as this lens has a built-in adjustment mechanism
• Macro focus function available

Fujinon MK50-135mm T2.9 Specs

Mount Type E Mount

Image Circle 28.5 mm diameter (supports 24.84 x 13.97 mm sensors)

Focal Length 50 - 135mm

Aperture T2.9 to T22 and closed

Iris Blades 9

Gear Mod 0.8

Focus Rotation 200°

Minimum Focus Distance Standard: 3'11" / 1.2 m

Macro: 2'9"' / 0.85 m

Object Dimensions at M.O.D. (16:9) 50mm: 21.0 x 11.8" / 534 x 300 mm

135mm: 7.7 x 4.3" / 196 x 110 mm

Angle of View (16:9) 50 mm: 27.9° x 15.9°

135 mm: 17° 20' x 9° 48'

Macro Available

Front Diameter Filter Thread: 82 mm

Outside diameter: 85 mm

Length 8.12" / 20.63 cm

Weight 2.16 lb / 0.98 kg

Packaging Info

Package Weight 4.28 lb

Box Dimensions (LxWxH) 13.25 x 7.75 x 6.6"

Designed For Use With:

FREEFLY Ember S5K, FREEFLY Wave, FREEFLY Wave Handheld Bundle

Kinefinity MAVO S35 MKII

Sony Alpha A5000, A5100, A6000, A6100, A6300, A6400, A6500, A6600

Sony Alpha A1, A7, A7 II, A7 III, A7 IV, A7C, A7R, A7R II, A7R III, A7R IV, A7R V, A7S, A7S II, A7S III, A9, A9 II, ZV-E10

Sony NEX-FS700R, NEX-FS700U, PXW-FS5, PXW-FS5M2, PXW-FS7, PXW-FS7M2, UMC-S3C, ZV-E1

Thom Alpha A6300
