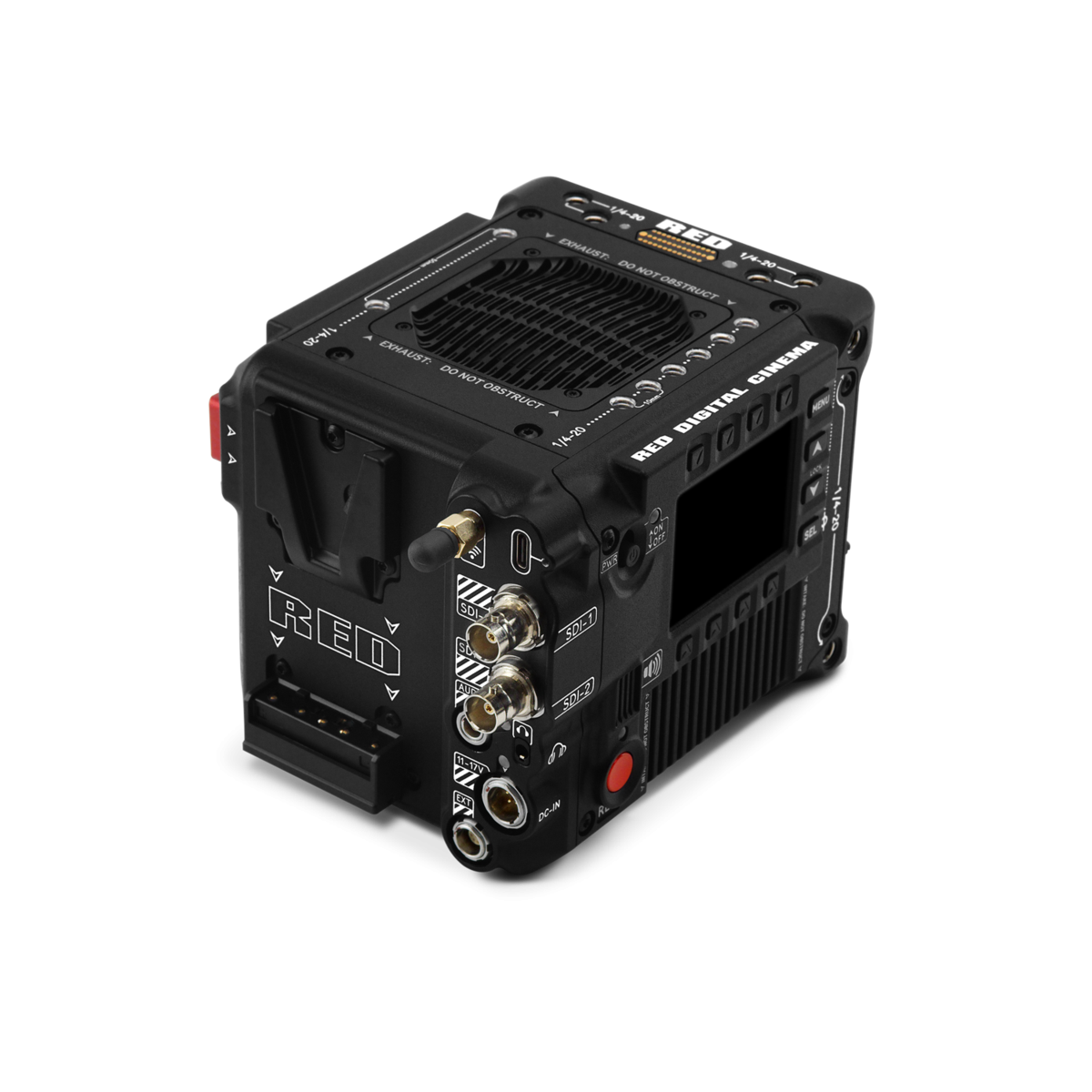

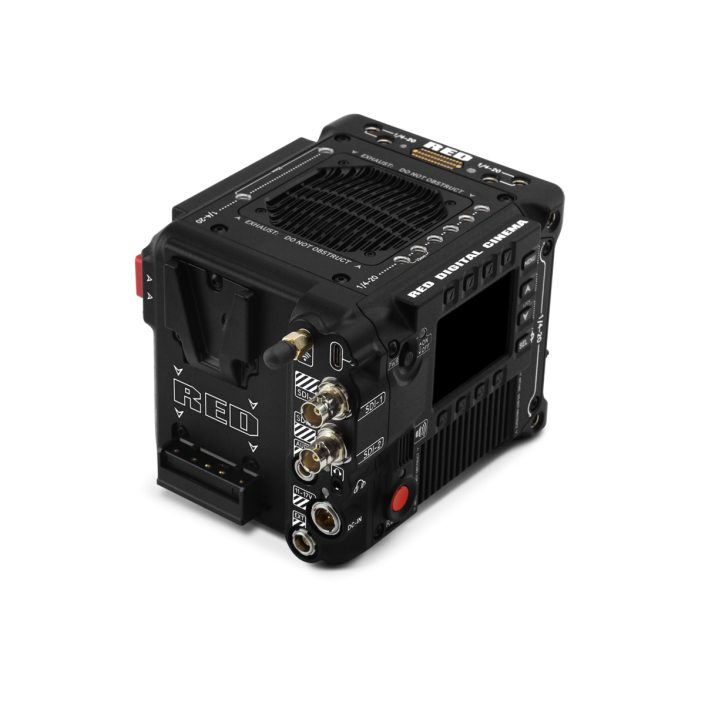

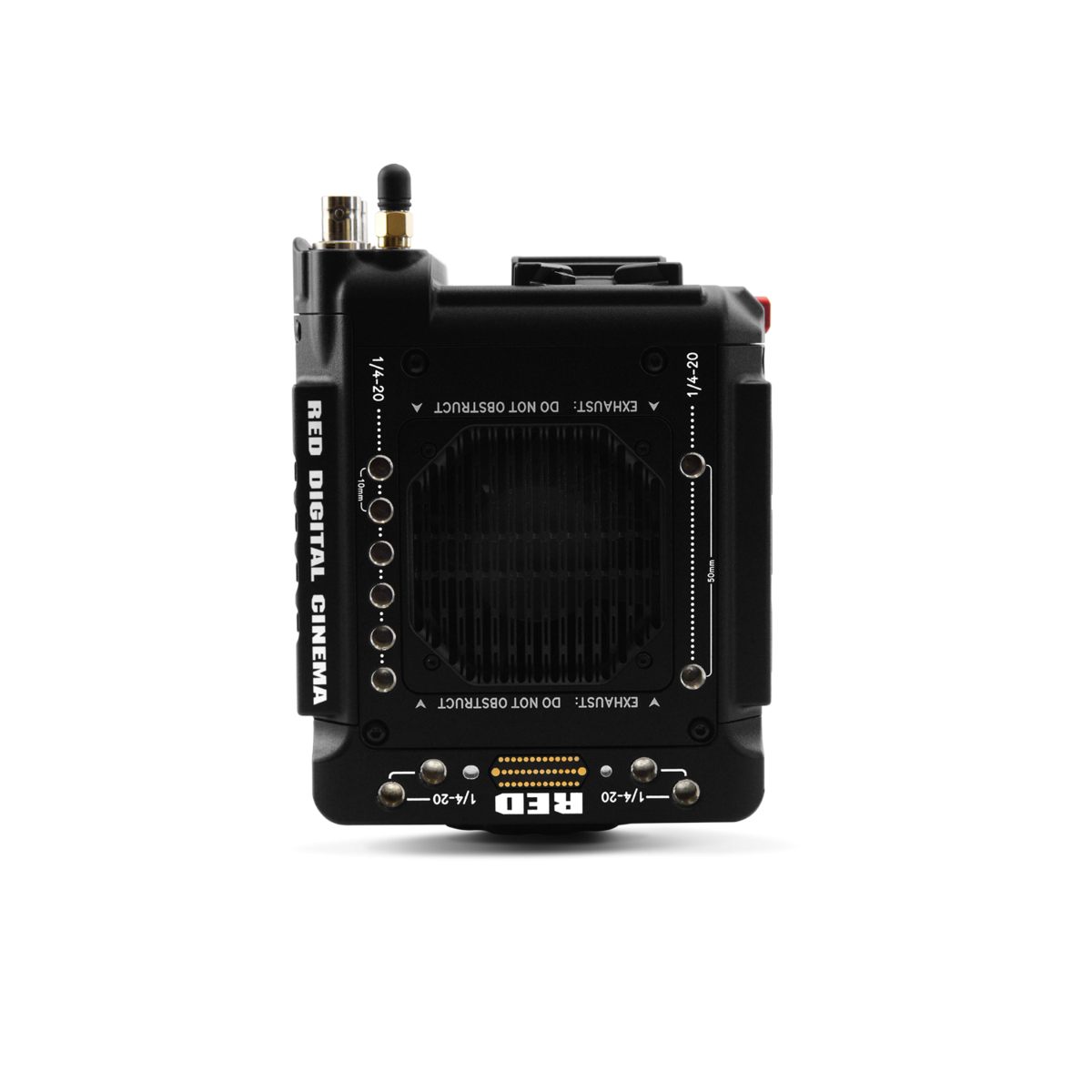

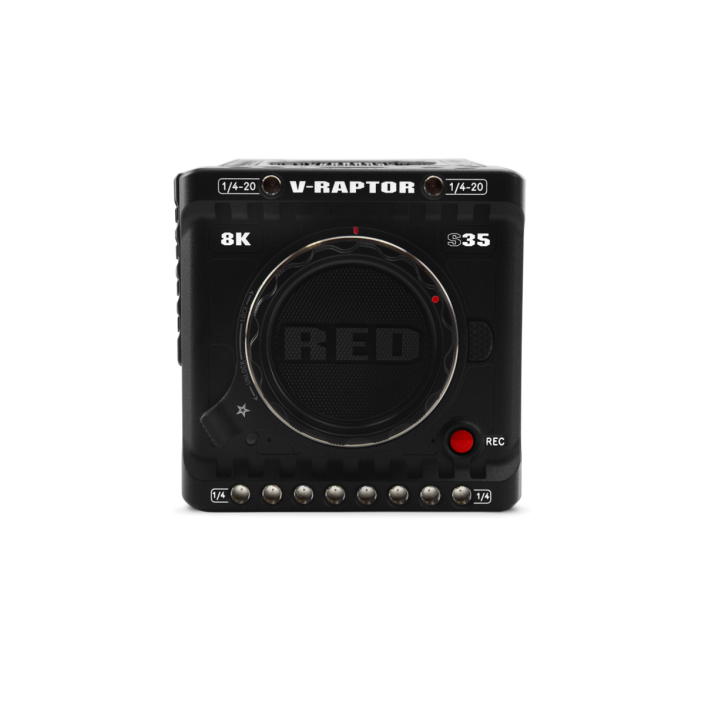

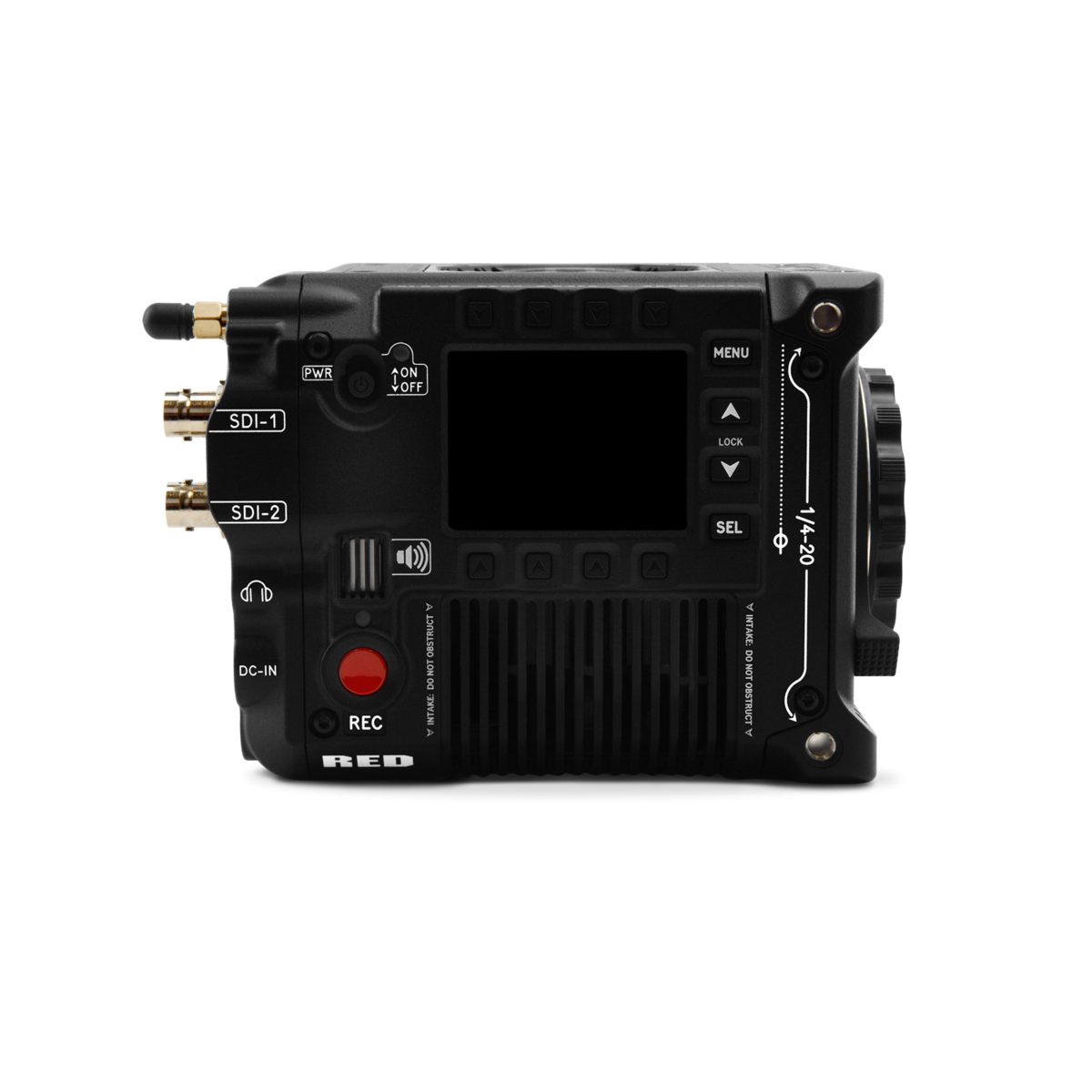

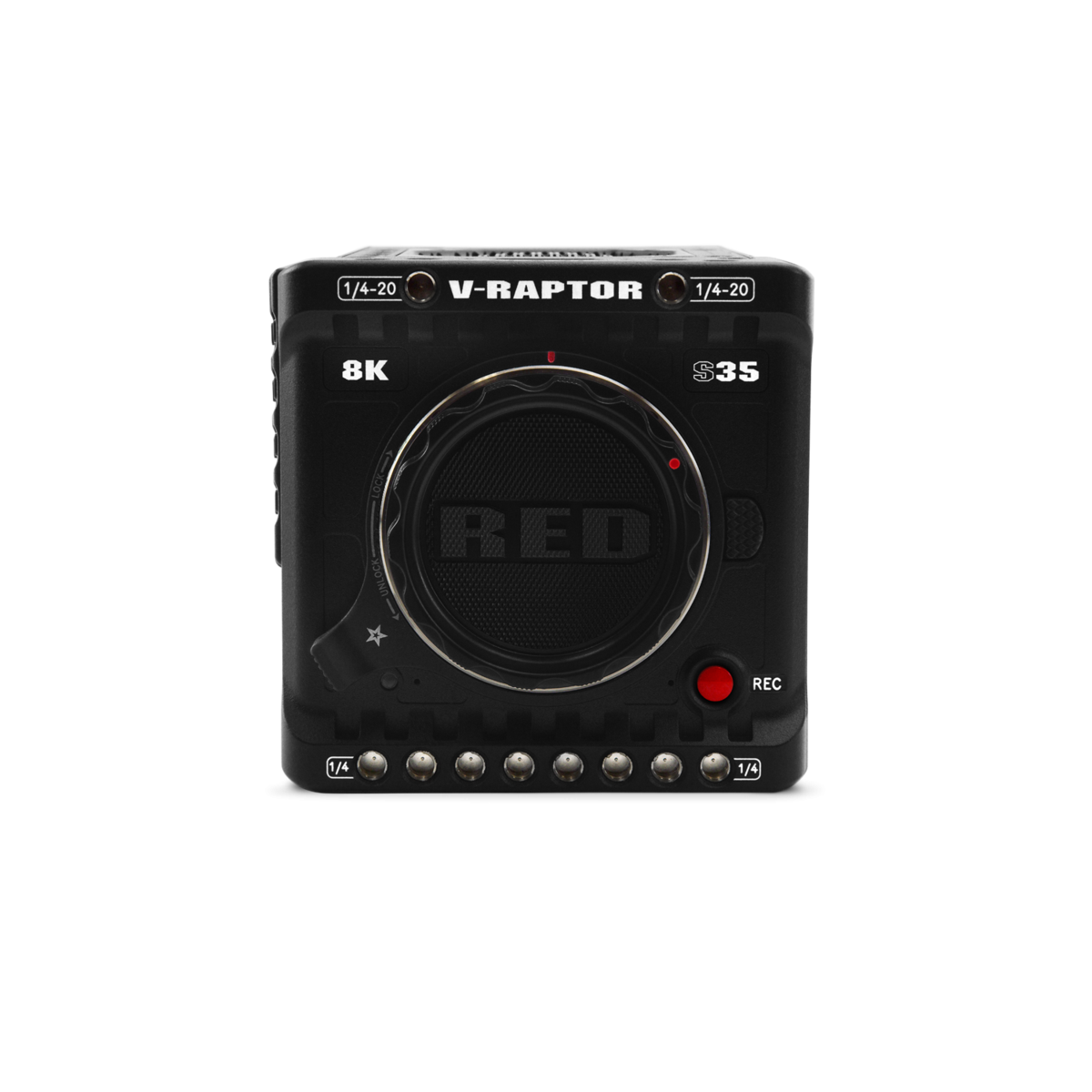

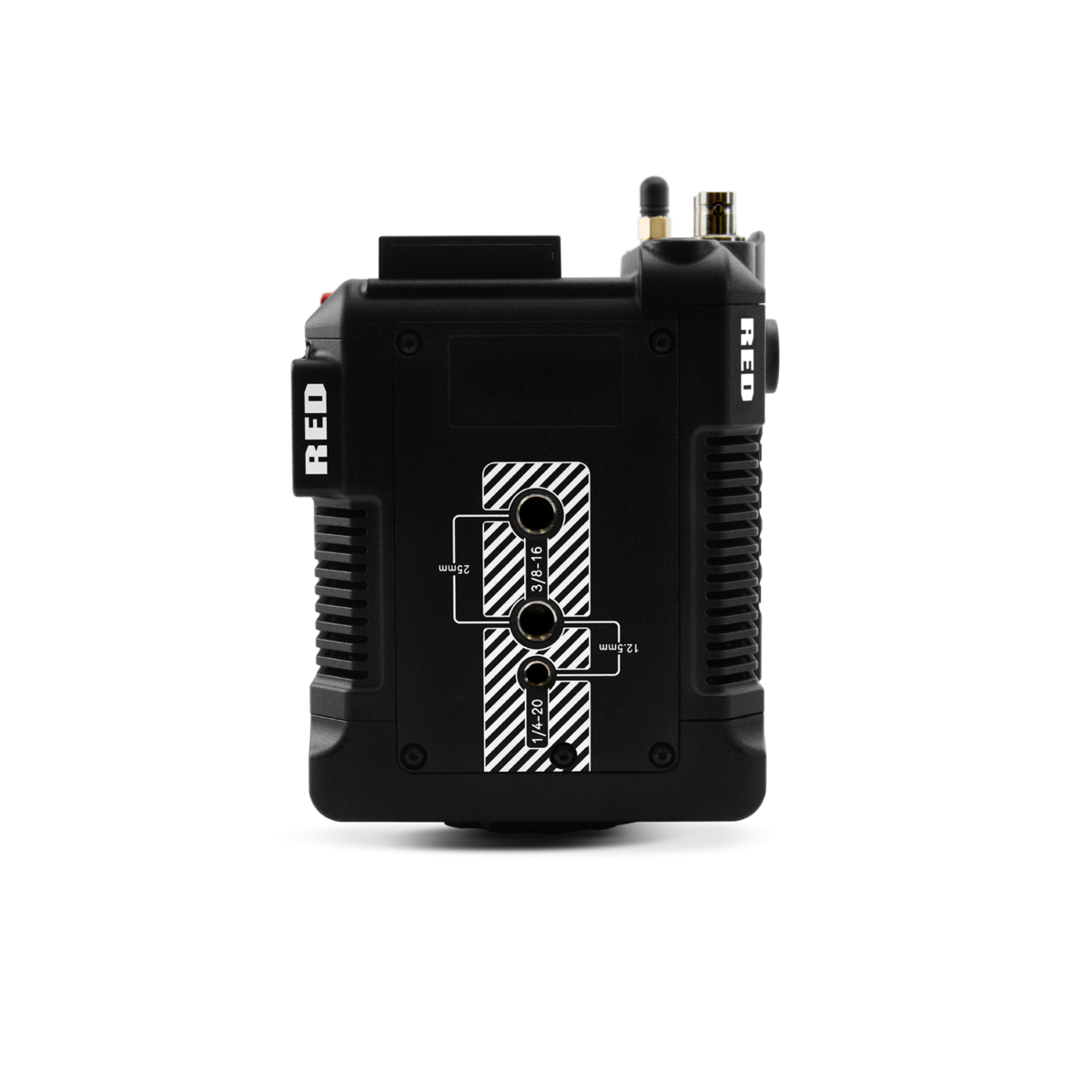

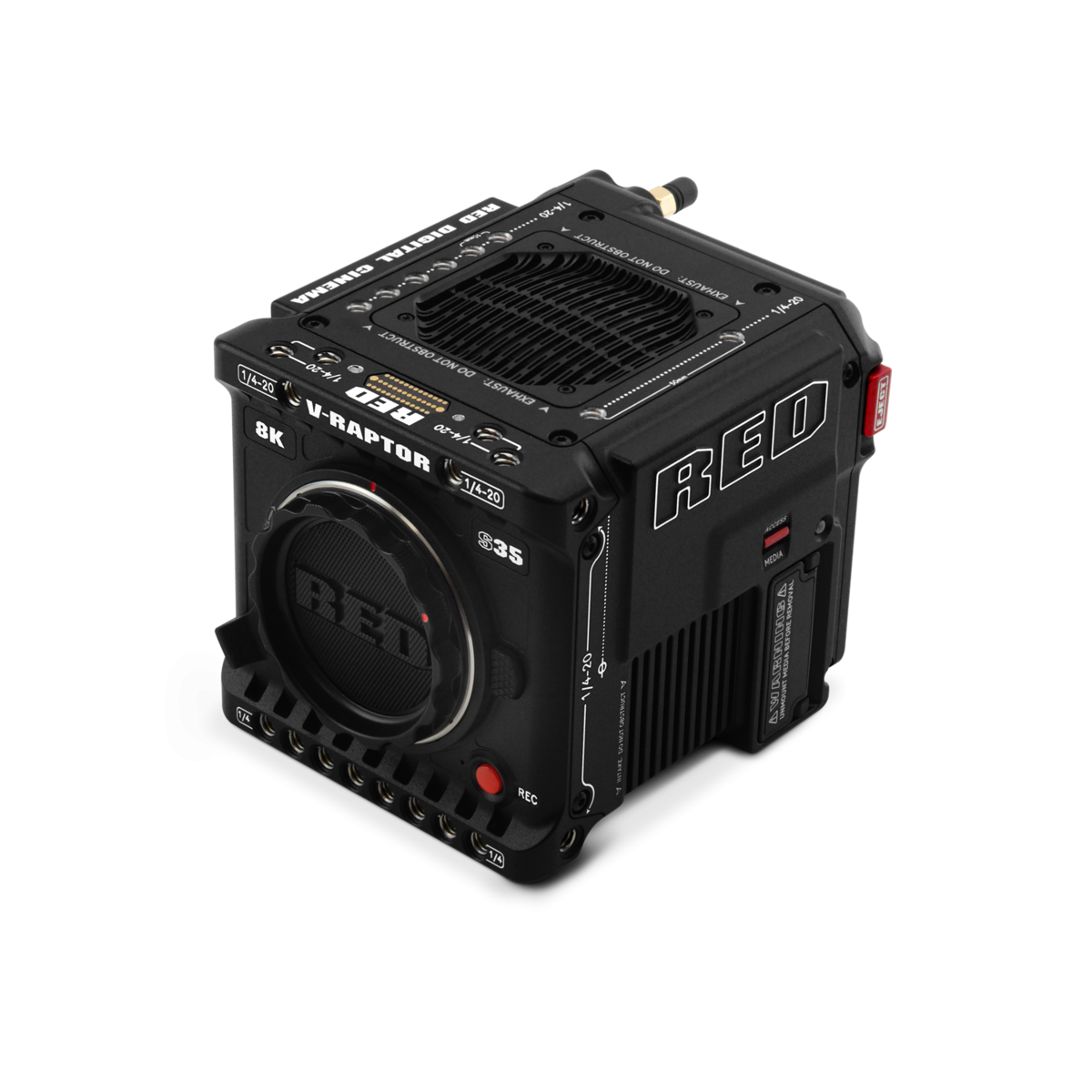

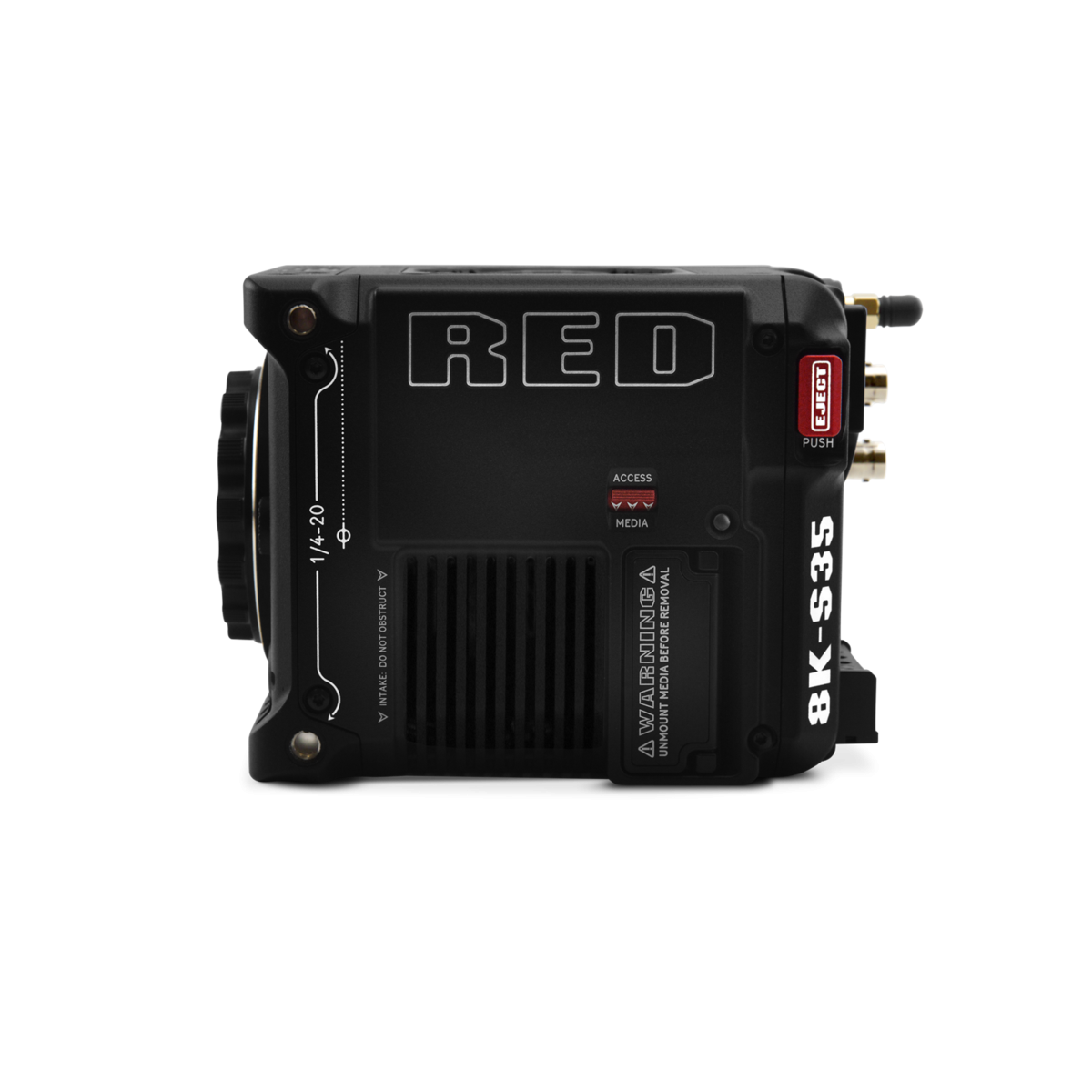

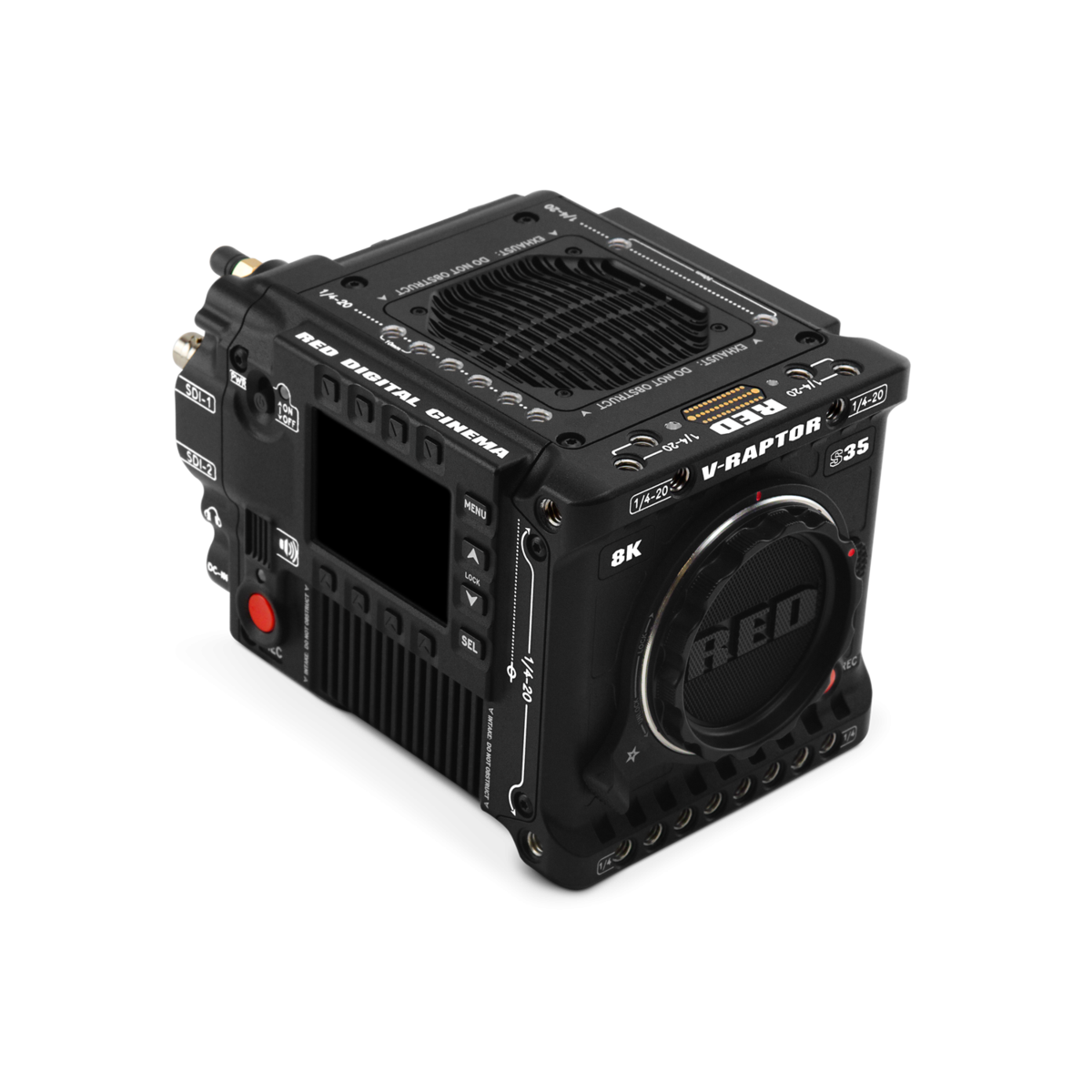

V-RAPTOR 8K S35
V-RAPTOR™ 8K S35 is another addition into the RED® DSMC3™ generation of cameras. Building on the same architecture of the V-RAPTOR™ 8K VV, the V-RAPTOR 8K S35 offers a new shooting format while leveraging the improvements in color science and performance of its larger 8K VV predecessor.
Featuring an 8K sensor optimized for Super35mm lenses, V-RAPTOR 8K S35 offers filmmakers a unique benefit of using the versatile range of Super35mm lenses while still capturing in the smooth true-to-life detail that 8K resolution provides. Create stunning slow-motion imagery at 120 fps using the full 8K Super35mm field of view, or up to 600 fps at 2K. With over 16.5 stops of dynamic range, V-RAPTOR 8K S35 is ready to capture stunning imagery in all types of environments. V-RAPTOR™ 8K S35 will also continue to feature RED’s proprietary REDCODE® RAW codec, allowing users to capture 16-bit RAW, and leverage RED’s latest IPP2 workflow and color management.
The 8K S35 sensor sits inside the same camera body as V-RAPTOR 8K VV, offering the same horsepower and flexibility filmmakers have come to rely on. The V-RAPTOR features a modernized platform in an amazingly compact package weighing in at barely over 4 lbs. With two 4K 12G-SDI outputs, XLR audio and phantom power via breakout adapter, and 1080p livestream, this system can handle most anything a shooter can throw at it.
Additionally, the V-RAPTOR/V-RAPTOR™ XL and the DSMC3 platform features advanced connectivity solutions which enable applications such as RED Connect for 8K R3D cinematic live streaming and remote record, remote control and monitoring, in-camera Frame.io integration, AWS direct upload, and more.
Included:
- V-RAPTOR 8K S35 Body
- DSMC AC Power Adaptor Pack (150W)
- RED Logo Sticker
- V-RAPTOR Information Card (incl. registration and support info)
- 2 Year Standard Warranty
STARTER PACK
The V-RAPTOR Starter Pack is a pre-bundled setup that is perfect for owner-operators, run-and-gun style shooters, or anyone looking to take advantage of V-RAPTOR’s nimble and versatile form-factor. It includes:
- 1x V-RAPTOR 8K S35 Camera System
- 1x DSMC3 RED Touch 7.0” LCD
- 1x RED PRO CFexpress 2TB
- 1x RED CFexpress Card Reader
- 2x REDVOLT MICRO-V
- 1x RED Compact Dual V-Lock Charger
- 2x V-RAPTOR Wing Grip
- 1x RED EXT-to-Timecode Cable 3'
- V-RAPTOR Information Card (incl. registration and support info)
- 2 Year Standard Warranty
PRODUCTION PACK
The V-RAPTOR™ Production Pack is a comprehensive and robust pre-bundled setup that is perfect for professional work and studio set ups. It includes:
- 1x V-RAPTOR 8K S35 Camera System
- 1x DSMC3™ RED® Touch 7” LCD
- 2x RED® PRO CFexpress 2TB
- 1x RED® CFexpress Card Reader
- 4x REDVOLT® MICRO 98Wh (V-Lock or Gold Mount)
- 1x RED® Compact Dual (V-Lock or Gold Mount) Charger
- 1x V-RAPTOR™ Tactical Top Plate w/ Battery Adapter (V-Lock or Gold Mount)
- 1x V-RAPTOR™ Top Handle w/ Extensions
- 1x V-RAPTOR™ Expander Blade
- 1x V-RAPTOR™ Quick Release Platform Pack
- 1x DSMC3 RED® 5-Pin to Dual XLR Adapter
- 1x RED® Production Grips
- 1x V-RAPTOR™ Side Ribs
- 1x V-RAPTOR™ Production Plates
- V-RAPTOR Information Card (incl. registration and support info)
- 2 Year Standard Warranty
- SENSOR TYPE
- V-RAPTOR™ 8K S35 35.4 Megapixel CMOS
- EFFECTIVE PIXELS
- 8192 x 4320
- SENSOR SIZE
- 26.21 mm x 13.82 mm (Diagonal: 29.63 mm)
- DYNAMIC RANGE
- 16.5+ stops
- MOUNT TYPE
- Accepts other Canon RF mount-based lens adaptors for diverse lens choices
Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
- MAX DATA RATES
- Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
- REDCODE® RAW MAX FRAME RATES
- 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
- BEST AVAILABLE REDCODE® SETTINGS
- REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
- REDCODE® RAW ACQUISITION FORMATS2
- 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
- APPLE PRORES
- Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160)
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)
- CONSTRUCTION
- Aluminum Alloy
- WEIGHT
- 4.03 lbs (without body cap and CFexpress card)
- BATTERY TYPE
- Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
- DC POWER INPUT
- 11-17V via 6-pin DC-IN
- OPERATING TEMPERATURE
- 0°C to 40°C (32°F to 104°F)
- STORAGE TEMPERATURE
- –20°C to 50°C (–4°F to 122°F)
- STORAGE HUMIDITY
- 0% to 85% non-condensing
- COLOR MANAGEMENT
- Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
- AUDIO
- Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
- REMOTE CONTROL
- Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
- MONITOR OUTPUTS
- 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
- MONITOR OPTIONS
- DSMC3™ RED® Touch 7.0” LCD
Integrated 2.4" LCD for camera control (no preview video)
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
- RED CONTROL
- Access full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
