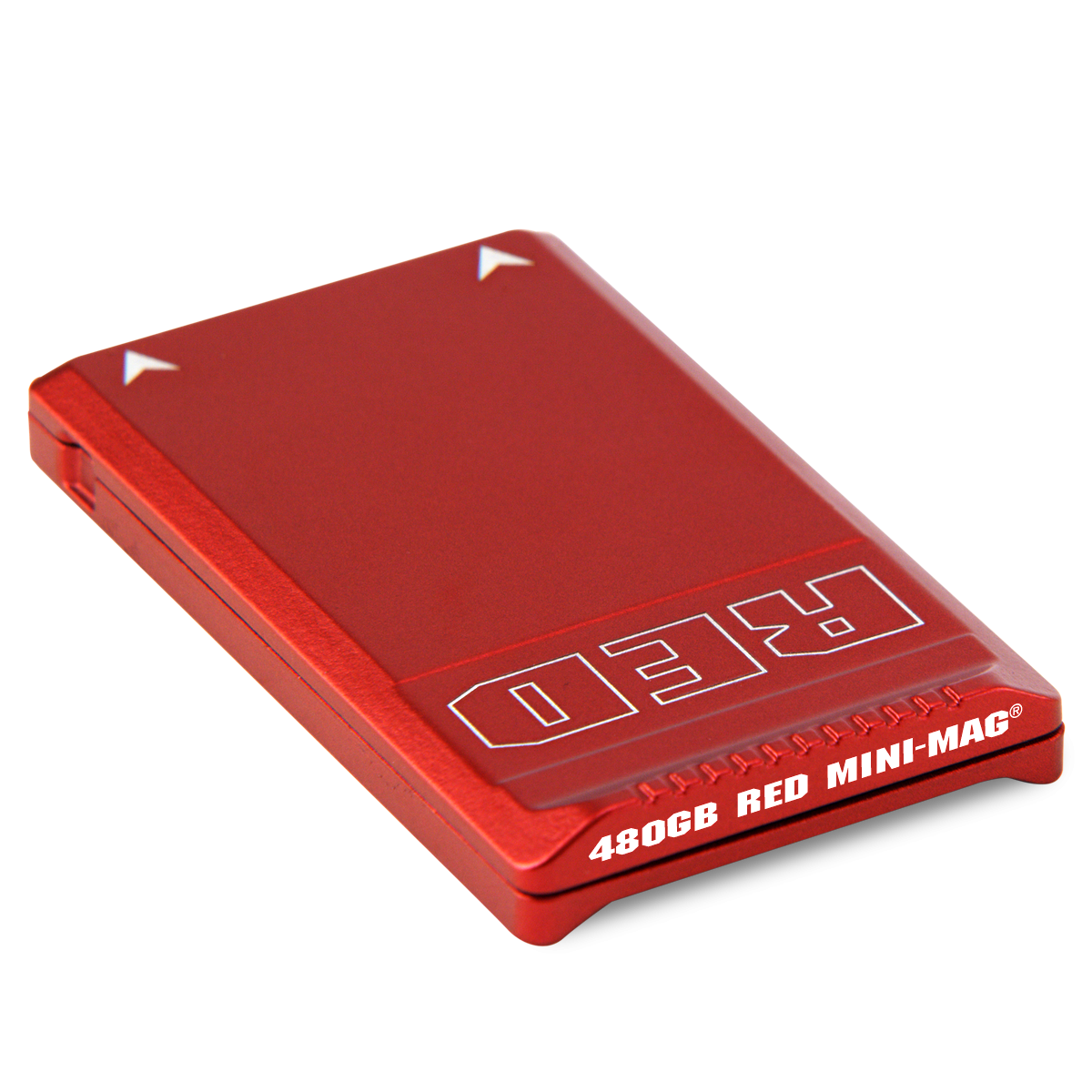

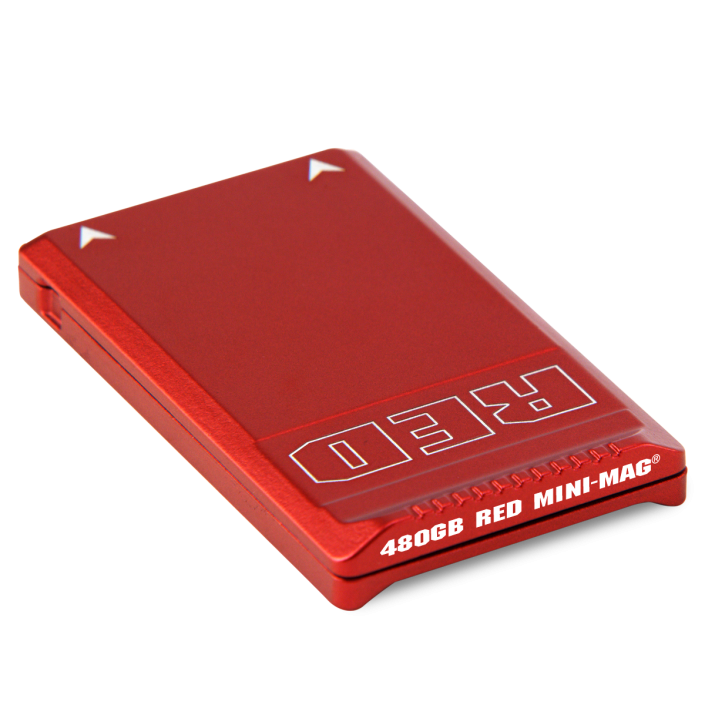

RED MINI-MAG 480GB
The RED MINI-MAG® is the smallest, fastest, and most powerful media option available. Compared to their predecessor, the REDMAG® 1.8", RED MINI-MAGs have faster read/write speeds to support higher frame rates and resolutions with minimal compression.
RED MINI-MAG data transfer speeds are up to 50% faster on DSMC2®, compared to their speeds on EPIC DRAGON. Capable of supporting simultaneous R3D® and Apple ProRes or Avid DNx recording on DSMC2 camera systems—RED MINI-MAGs offer the ideal media solution—whatever your workflow might be.
Manufactured from robust aluminum, RED MINI-MAGs offer rugged reliability in a compact form factor. Available in two capacities that can achieve up to 300 MB/s for even lower REDCODE® compression.
NOTE: Media max data rates vary based on camera BRAIN®.
NOTE: RED MINI-MAGs require a RED MINI-MAG Side SSD Module for use with your RED EPIC® or SCARLET® BRAIN.
- DIMENSIONS
- Depth: 2.89 in. (73 mm)
Height: 1.78 in. (45 mm)
Width: 0.32 in. (8 mm)
- WEIGHT
- 0.11 lbs (0.05 kg)
- MAX DATA RATES (480GB & 960GB)
- EPIC DRAGON up to 200 MB/s
RED EPIC-W up to 275 MB/s
RED RAVEN up to 140 MB/s
SCARLET-W up to 170 MB/s
SCARLET DRAGON up to 72 MB/s
WEAPON (Carbon Fiber) up to 300 MB/s
WEAPON (Magnesium) up to 225 MB/s
- OPERATING TEMPERATURE
- 10°C to 40°C (50°F to 104°F)
- STORAGE TEMPERATURE
- –20°C to 50°C (–4°F to 122°F)
- OPERATING HUMIDITY
- 20% to 80%, non-condensing
- STORAGE HUMIDITY
- 10% to 90%, non-condensing
- USABLE CAPACITY (FAT32)
- RED MINI-MAG 480GB: 480.05GB / 447.08GiB
RED MINI-MAG 960GB: 960.08GB / 894.14GiB
