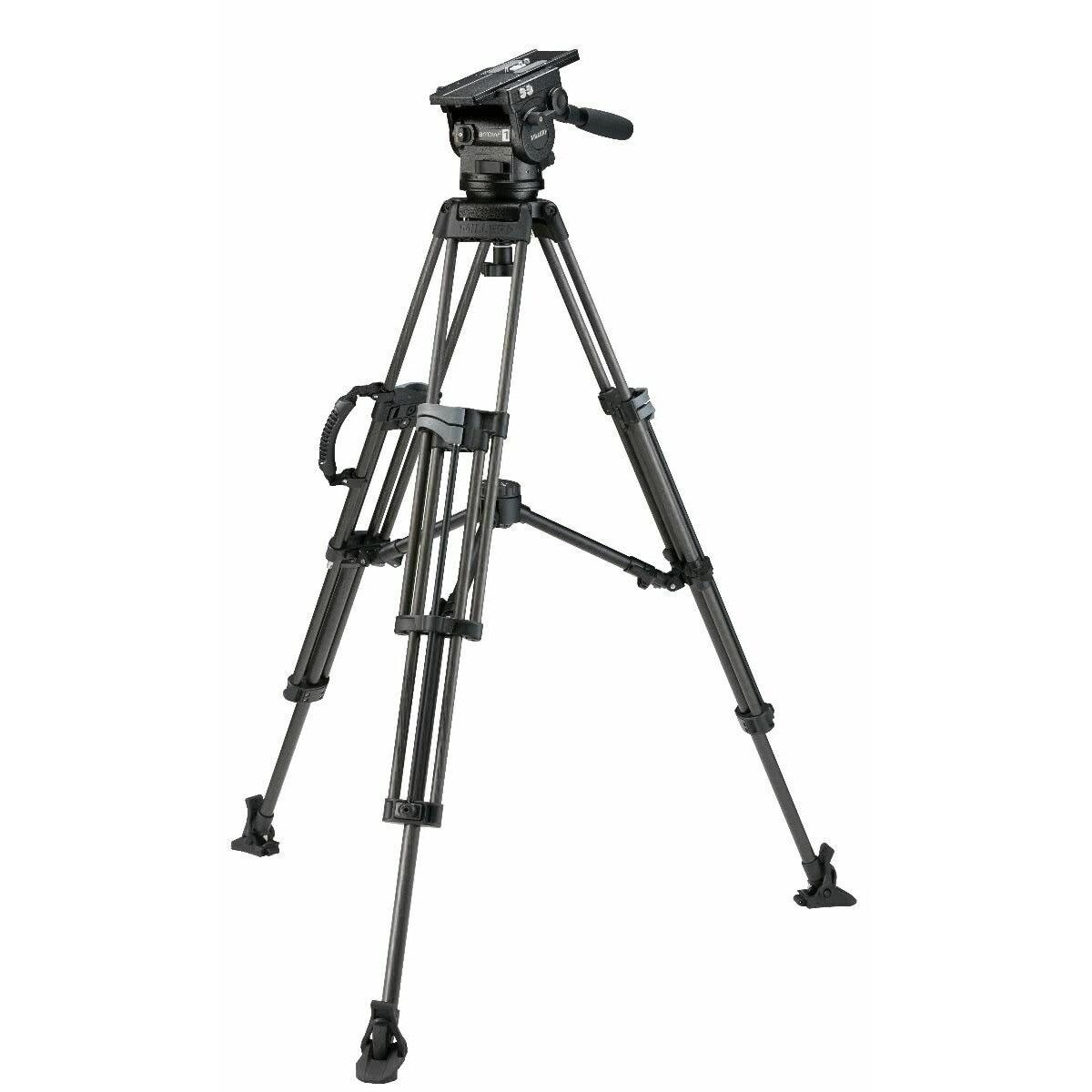

The 3027 Carbon Fibre, Sprinter II, 2-stage Arrowx 1 system, fitted with mid-level spreader is designed for speed of setup, high level of stability in a lightweight package, and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.
The Arrowx 1 is matched with the 2 stage Sprinter II (carbon fibre) tripod and mid-level spreader to give incredible speed of set up, ultra light weight, large height range and the versatility to set up on all terrain.
| Payload Range | 0-16.0kg (0-35.3lbs) |
| Weight | 7.7kg (16.9lbs) |
| Height Range | 602-1692mm (23.7-66.6") |
| Transport Length | 862mm 33.9” |
| Counterbalance Positions | 16 selectable positions |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release camera plate (Euro) |
| Sliding Range | 120mm (4.7”) |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 162mm (6.4") |
| Illuminated Controls | Bubble level, pan-tilt drag controls |
| Pan Handle | Telescopic 390-590mm (15.4-23.2") |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 2-stage |
| Lock Type | HS dual action |
| Leg Material | Carbon fibre |
| Components | |

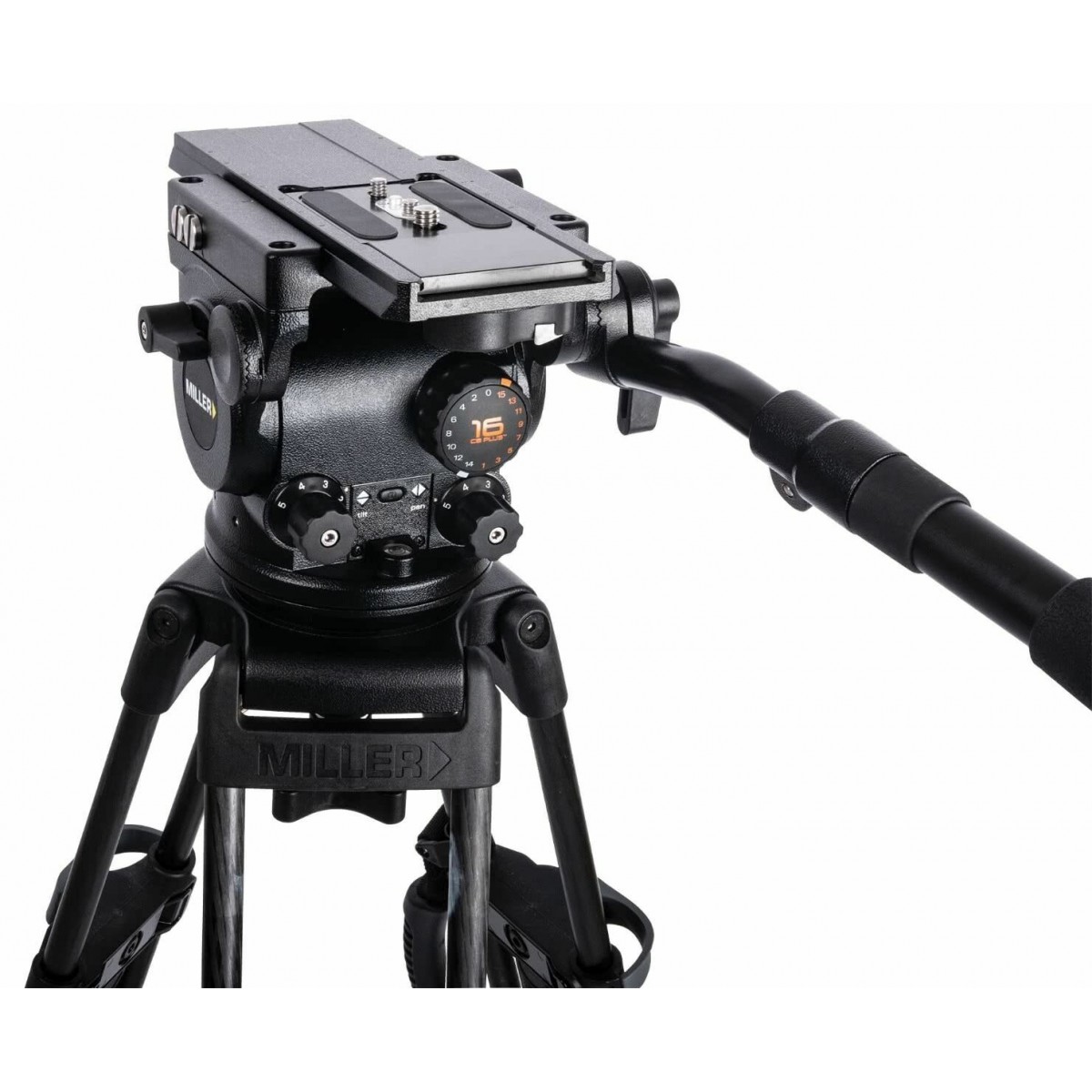

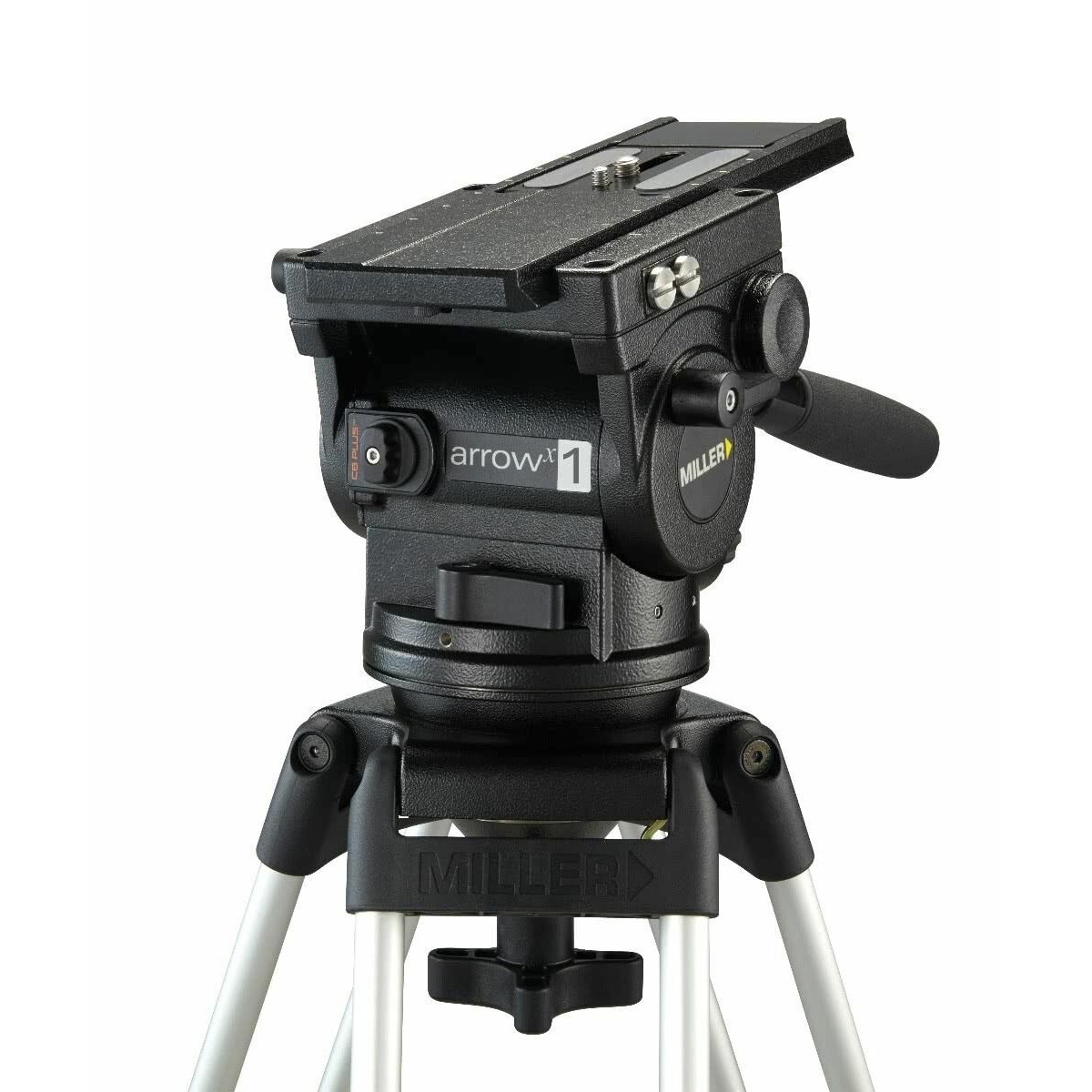

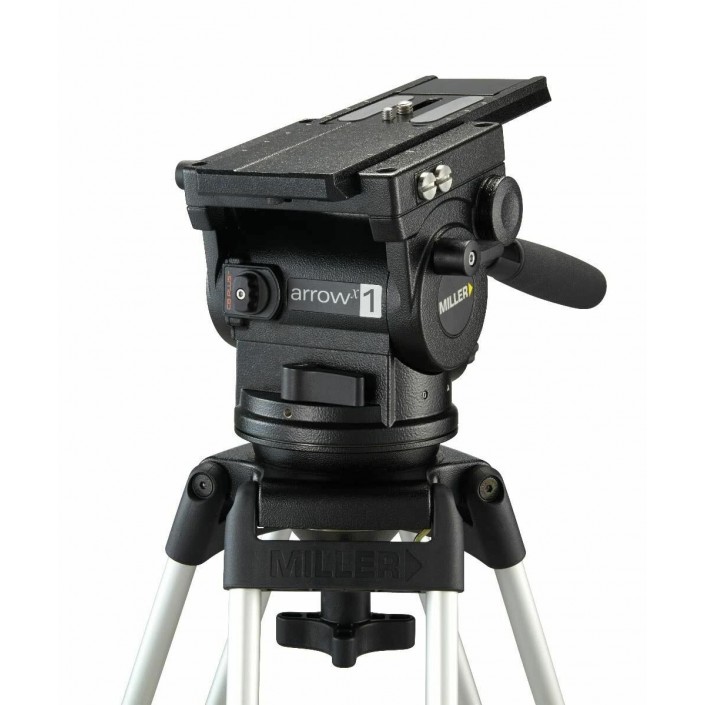

| 1070 | Arrowx 1 fluid head |
|---|---|
| 1576 | Sprinter II 2-stage tripod (carbon fibre) |
| 993 | Mid-level spreader |
| 475 | Rubber feet (set of 3) |
| 696 | Pan handle - telescopic with clamp |

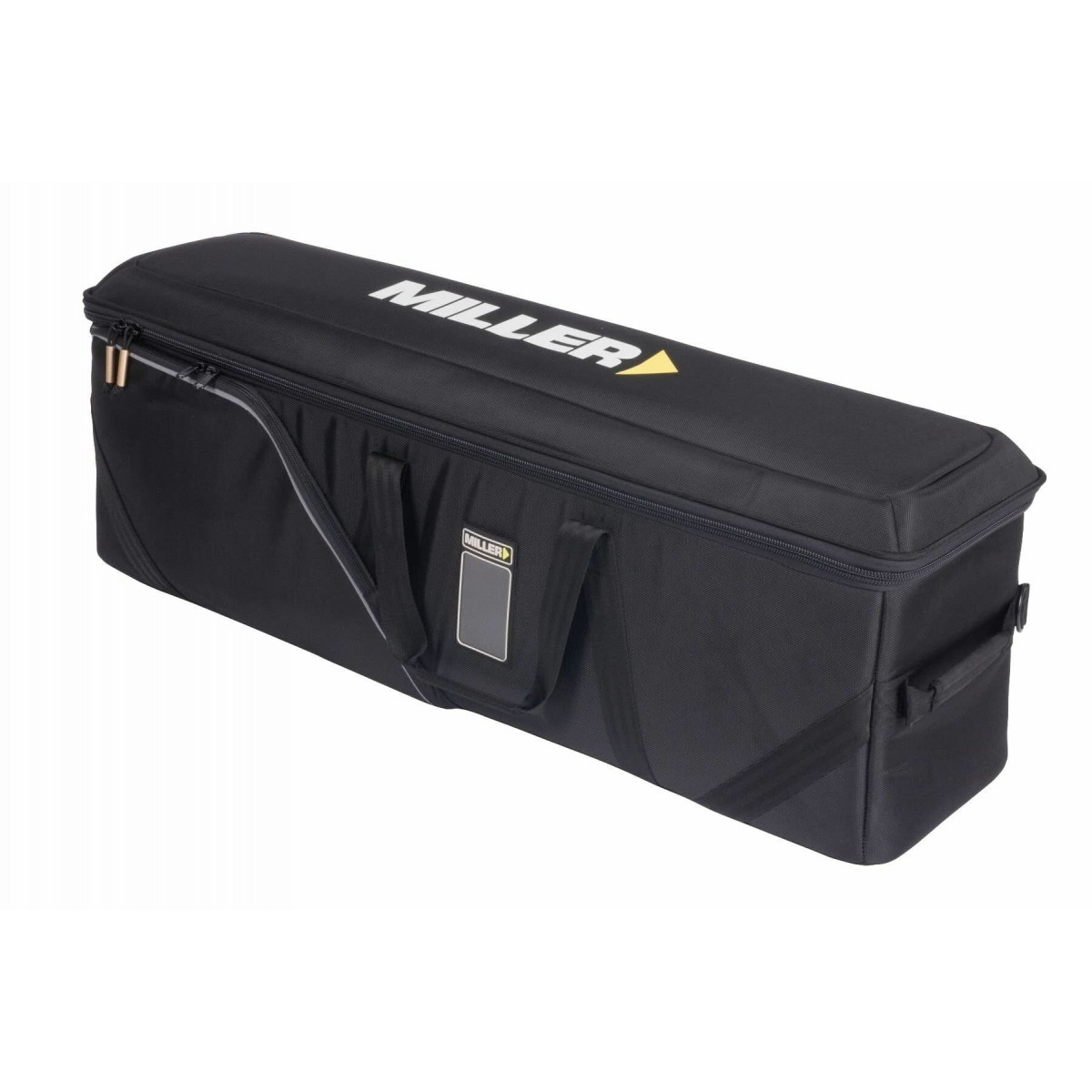

| 3502 | Arrowx soft case 2-stage |
