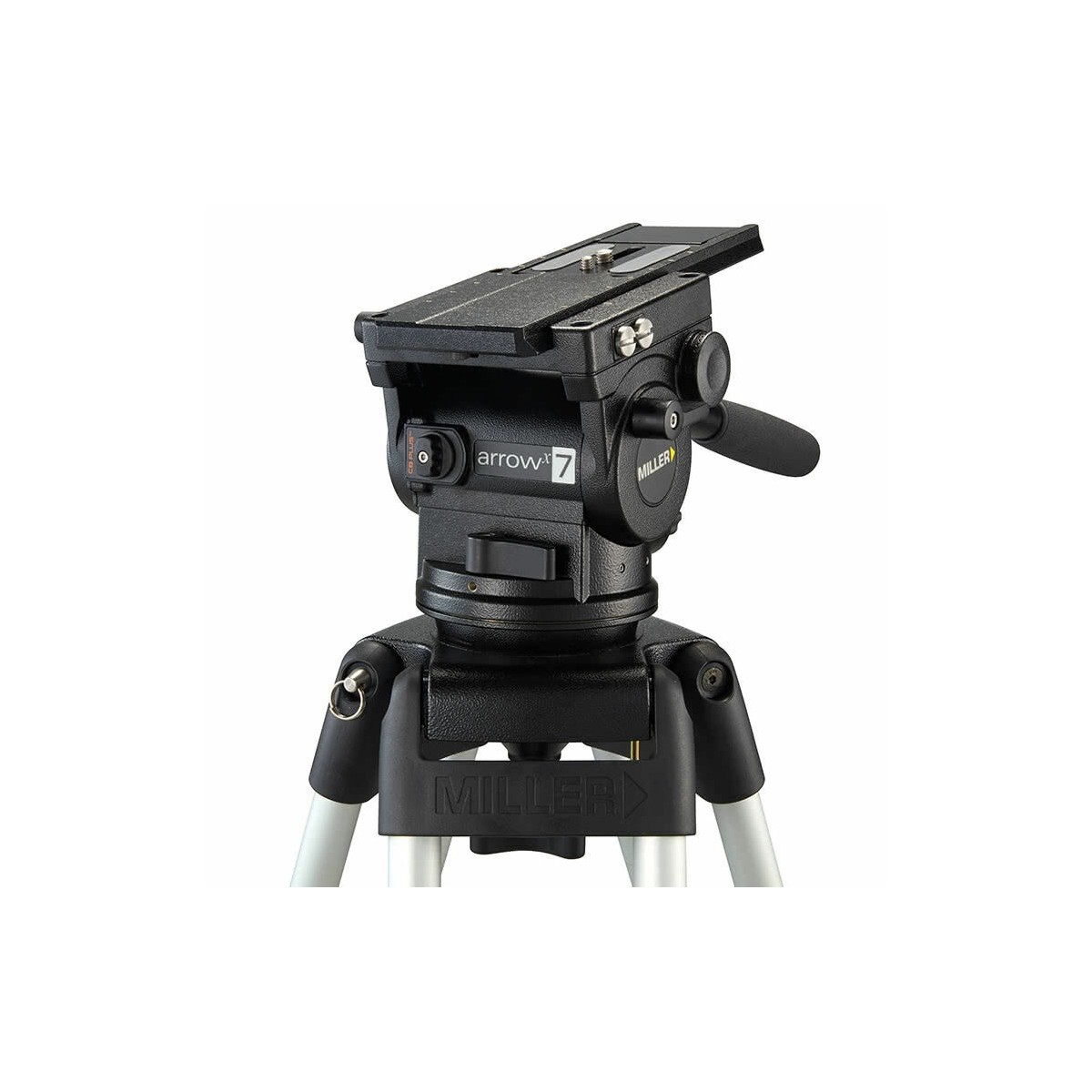

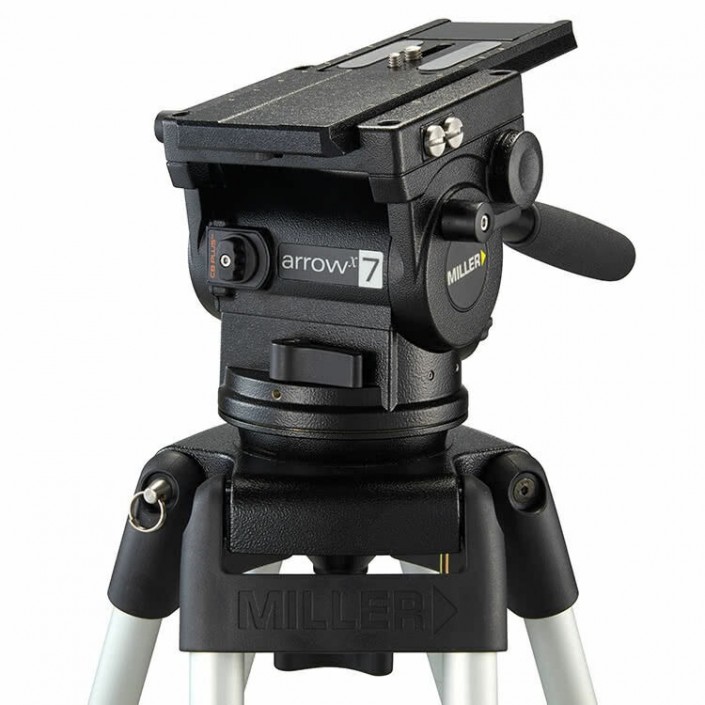

Tripod System Arrowx 7 HD 2 Stage Carbon Fibre
The 3179 Carbon Fibre, Heavy Duty 2-stage Arrowx 7 system, fitted with mid-level spreader is designed for speed of setup, high level of stability, height range and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.

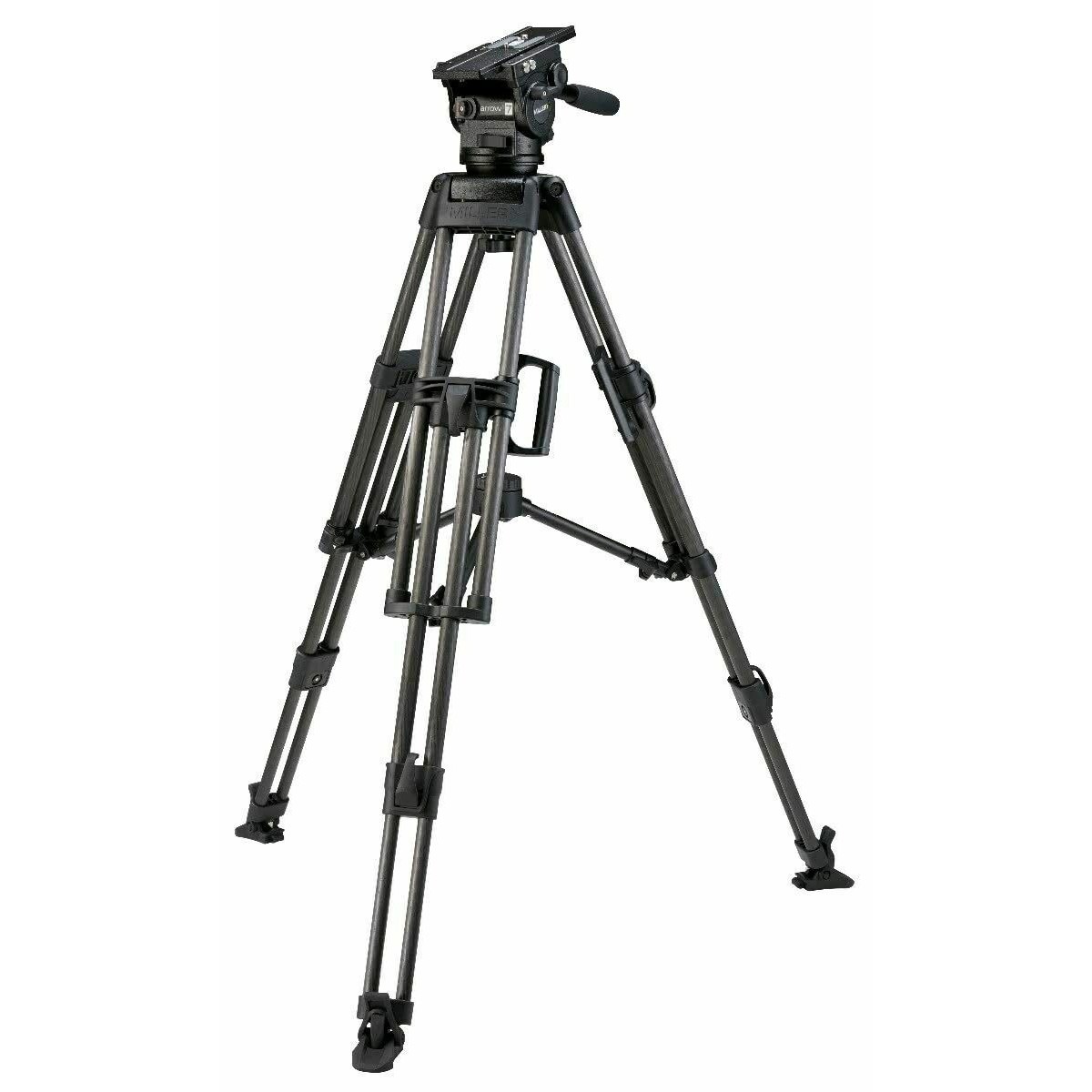

The Arrowx 7 is matched with the HD 2 stage (carbon fibre) tripod and mid-level spreader which makes for one of the most solid system packages in the Miller range. The system can support EFP and OB applications and the mid-level spreader means system can be set up in all terrains.
- Compact, lightweight and versatile.
- 7 selectable positions of fluid pan and tilt drag + 0.

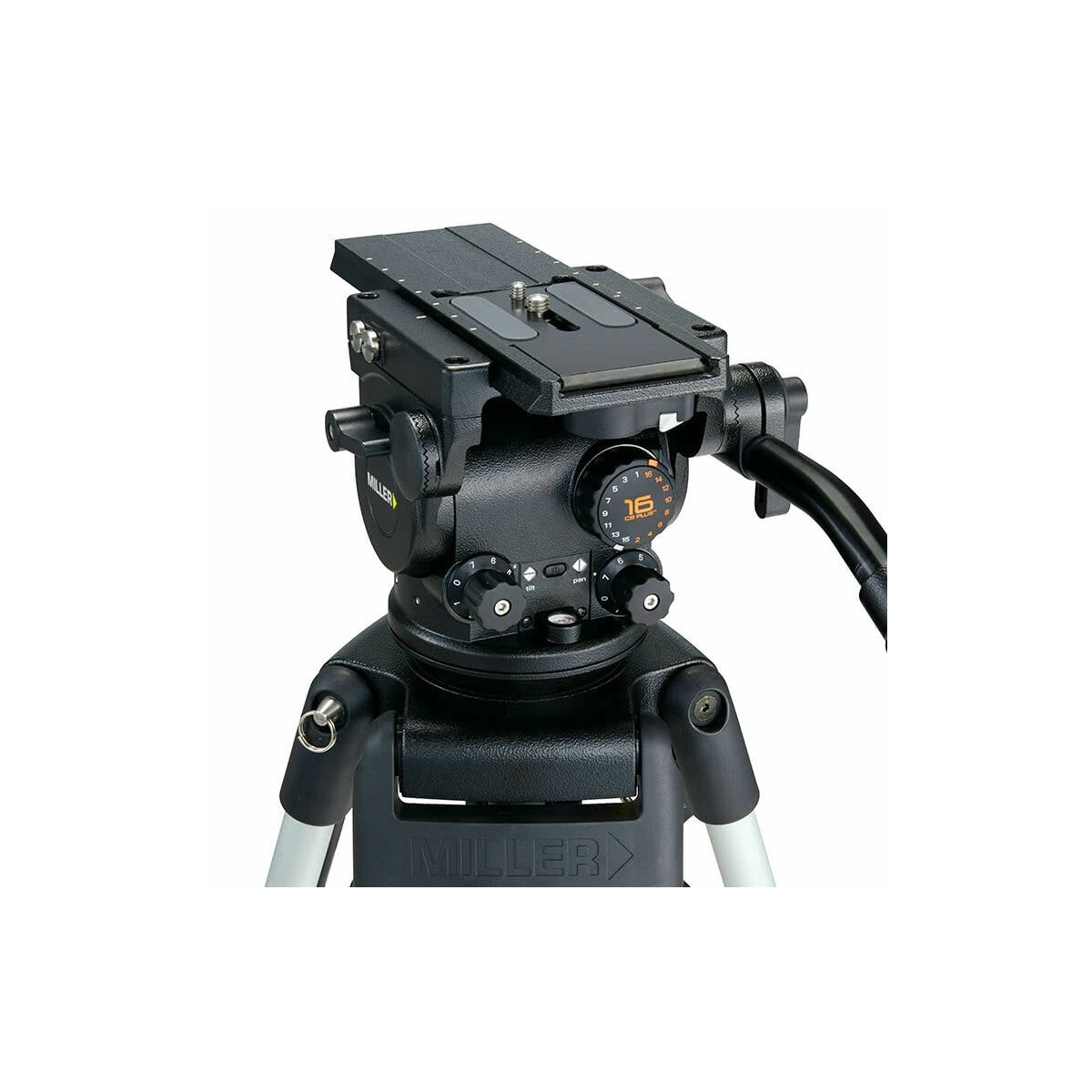

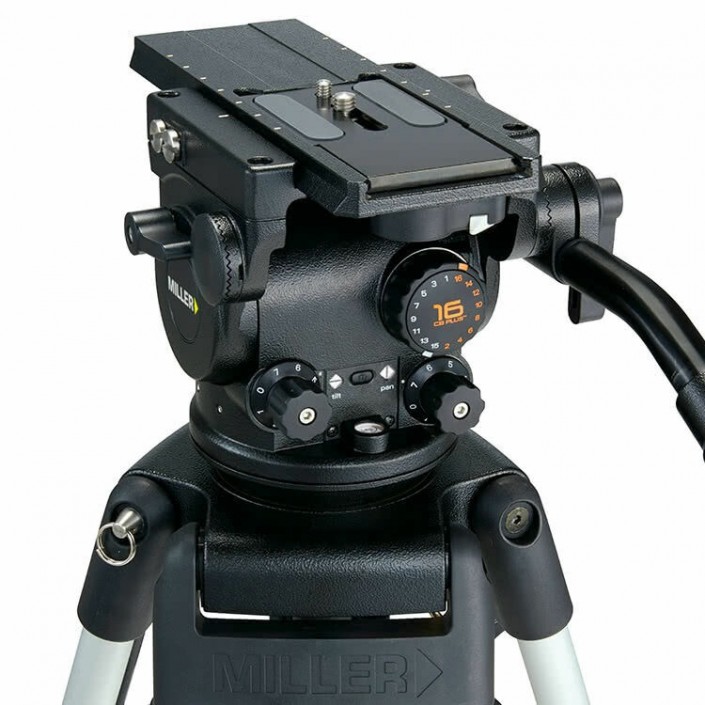

- 16 position CB Plus™ counterbalance system.
- Perfect for payloads to 6-25kg (13.2-55.1lbs).
- Integrated 100mm bowl.
- 2-stage flip lock leg extension.
- Lightweight carbon fibre tubing.
- Comes with mid-level spreader and rubber feet.
- 3 year warranty.
Payload Range | 6.0-25.0kg (13.2-55.1lbs) | ||||||||||||
Weight | 9.6kg (21.1lbs) | ||||||||||||
Height Range | 642-1752mm(25.3-69.0") | ||||||||||||
Transport Length | 912mm (35.9”) | ||||||||||||
Counterbalance Positions | 16 selectable positions | ||||||||||||
Pan Tilt Drag | 7 selectable fluid drag positions + 0 | ||||||||||||
Pan Tilt Locks | Positive lock calliper brake system | ||||||||||||
Tilt Range | + 90°/ -75° | ||||||||||||
Pan Range | 360° | ||||||||||||
Camera Platform | Quick release camera plate (Euro) | ||||||||||||
Sliding Range | 120mm (4.7") | ||||||||||||
Mounting Base | Ø100mm (3.9") ball levelling | ||||||||||||
Height Above Bowl | 162mm (6.4") | ||||||||||||
Illuminated Controls | Bubble level, pan-tilt drag controls | ||||||||||||
Pan Handle | Telescopic 390-590mm (15.4-23.2") | ||||||||||||
Temperature Range | -40° to +65°C (-40° to +149°F) | ||||||||||||
Leg Extension | 2-stage | ||||||||||||
Lock Type | Flip lock | ||||||||||||
Leg Material | Carbon fibre | ||||||||||||
Components |
|
